Removing and installing cradle for cellular telephone - AR82.70-P-8918A

MODEL 170 up to 30.6.98, 202 as of 1.9.95 up to 30.6.98, 210 up to 30.6.98 with CODE (313) D-network cellular telephone

Illustrated on model 202

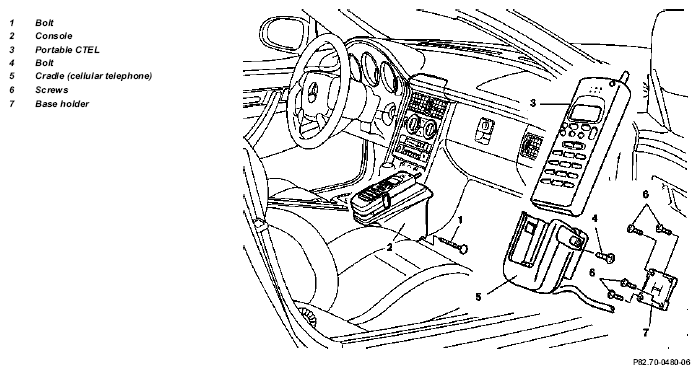

Fig 1: Identifying Cradle For Cellular Telephone Components - Model 202

Illustrated on model 170

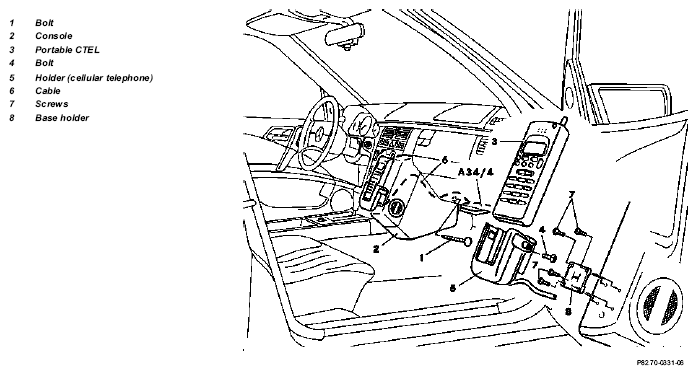

Fig 2: Identifying Cradle For Cellular Telephone Components - Model 170

	Removing, installing
1	Remove radio	Except model 170	AR82.60-P-7502EA
2	Fold up cover on center console (screwed)	See: ↓
		Model 202: Remove cover on center console	AR68.20-P-2350E
		Model 210: Remove cover on center console	AR68.20-P-2350F
3	Remove cover on shift lever	Model 170	AR68.20-P-2310G
4	Remove console (2)	The console (2) is inserted into the center console and fastened with screw (1).
5	Remove cradle (cellular telephone, 5)	Loose screw (4) and push cradle (cellular telephone, 5) upward.
6	Install in the reverse order
