Removing and installing bracket for cellular telephone - AR82.70-P-8918AD

MODEL 170 as of 1.7.00 with CODE (854) MB cellular telephone Holder for cellular (telephone) on right center console

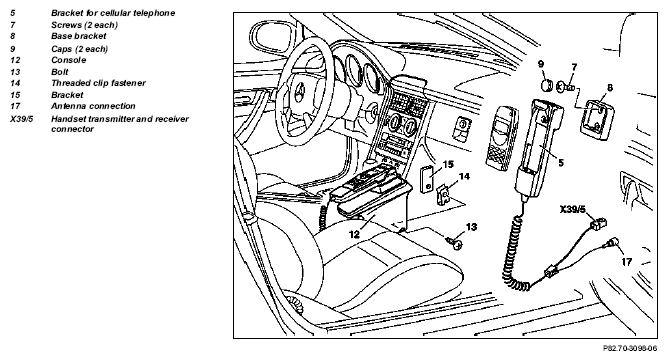

Fig 1: Identifying Bracket For Cellular Telephone Remove/Install Components

	Removal, installation
1	Remove cover on shift lever		AR68.20-P-2310G
2	Remove cellular telephone from bracket (5)
3	Remove console (12)	The console (12) is inserted into the center console and fastened with screws (13), bracket (15) and threaded clip fasteners (14).
4	Disconnect handset transmitter/receiver connector (X39/5) and antenna connection (17)	In center console on right side of shift lever.
5	Remove bracket for cellular telephone (5) from base bracket (8) and remove connection line from console (12)	The pull relief for the connection line is inserted into the groove in the console (12).
6	Pull cap (9) out of base bracket (8)
7	Unscrew 2 screws (7) from base bracket (8) and lift base bracket (8)
8	Install in the reverse order
