Authorizing dynamic navigation system - AF82.61-P-6007-01B

Models 129, 170, 202, 208, 210, 215, 220 with CODE (815) Dynamic navigation system with CODE (317) mobile phone D-network (D2B)

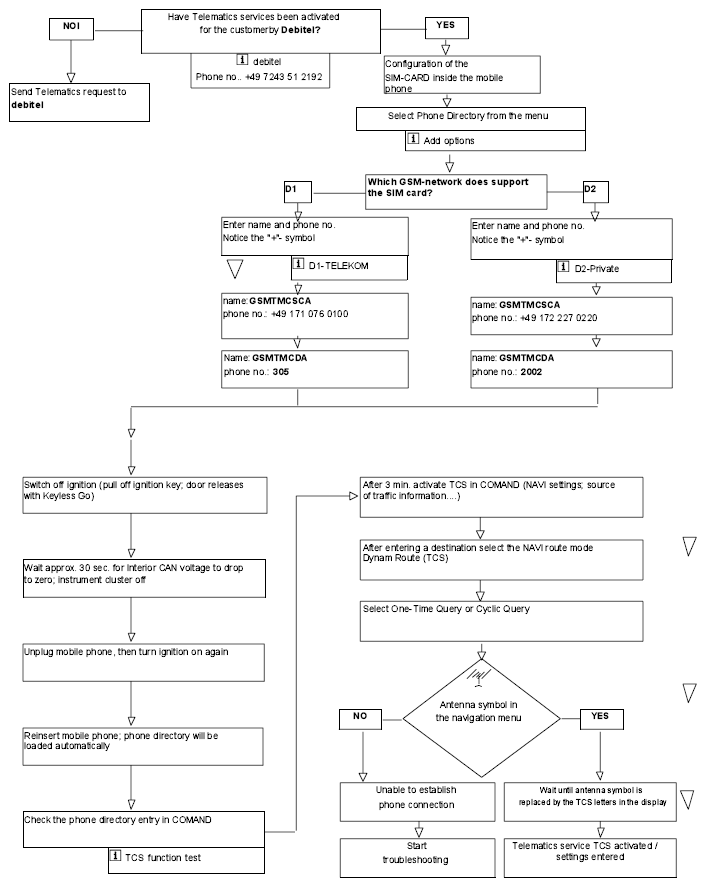

Fig 1: Identifying Authorizing Dynamic Navigation System Flow Chart
G04633726
