Retrofitting wiring harness - AZ82.70-P-0001-04AB

  1. Converting telephone wiring harness as shown in figure.

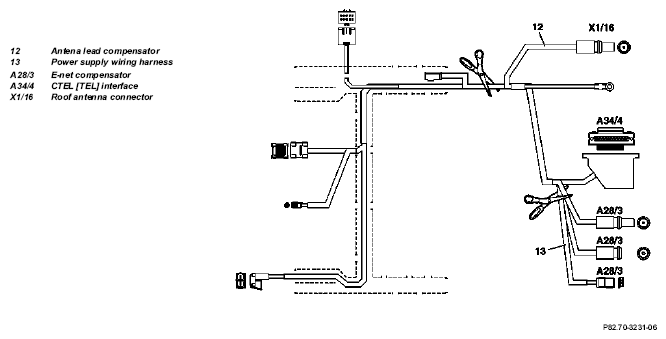

    Fig 1: Telephone Wiring Harness Diagram
    G04745894
  2. Tie out antenna lead compensator (12) and tie out power supply wiring harness (13) to length of approx. 500 mm.

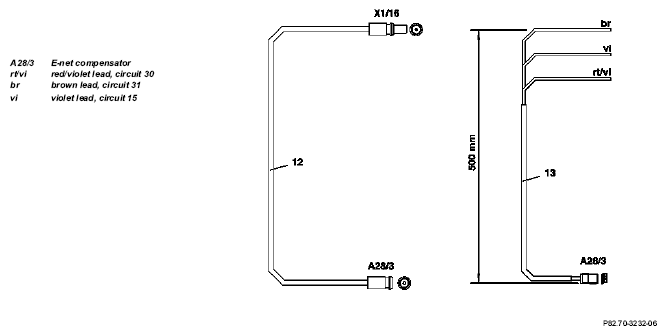

    Fig 2: Identifying Power Supply Wiring Harness
    G04745895
  3. Disconnect standard antenna lead (11) in trunk on left from rod antenna connector (A28x1).
  4. Route antenna lead (11) into trunk

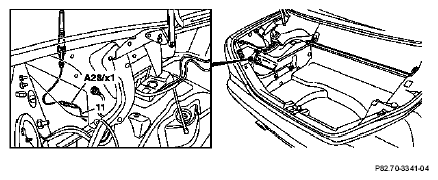

    Fig 3: Identifying Antenna Connector
    G04745896
  5. Connect standard antenna lead (11) and new antenna lead compensator (12) to E-net compensator (A28/3).
  6. Connect power supply wiring harness (13).
  7. Route antenna lead compensator (12) to left C-pillar and connect to rod antenna connector (A28x1).
    Fig 4: Identifying E-Net Compensator And Antenna Lead
    G04745897
  8. Open standard wiring harness at telephone interface (A34/4), expose black/violet lead (sw/vi) circuit 15, red/ violet lead (rt/vi) circuit 30 and brown lead (br) circuit 31.
  9. Solder violet lead (vi) from power supply wiring harness (13) to black/violet lead from standard wiring harness.
  10. Solder red/violet lead (rt/vi) from wiring harness (13) to red/violet lead (rt/vi) from standard wiring harness.
  11. Solder brown lead (br) from wiring harness (13) to brown lead (br) from standard wiring harness.

    IMPORTANT Use solder connectors.

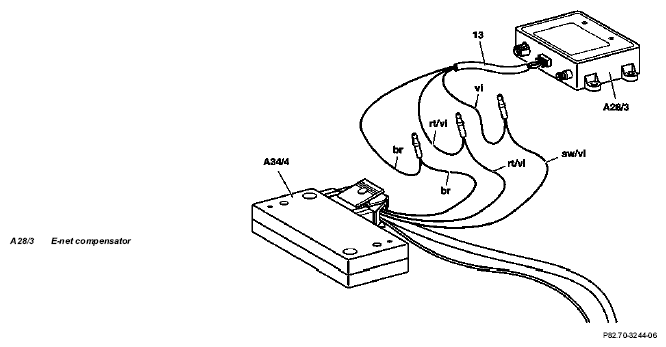

    Fig 5: Identifying E-Net Compensator, Telephone Interface And Wiring Harness
    G04745898
