Bleed brake system. - AR42.10-P-0010A: Notes

MODEL 129, 140, 170, 202, 208, 210

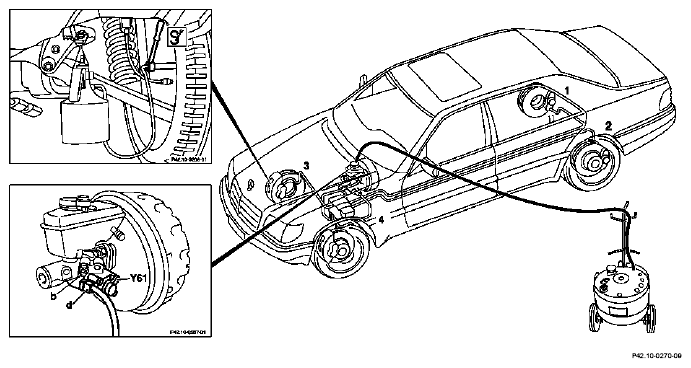

Fig 1: Bleeding Brake System
G04635471
MODIFICATION NOTES

19.10.00 Value changed from 4 to 7 Nm Value in BA42.10-P-1002-03A changed for models 202.033/093, 208.374, 210.072 with code 957 (E50 AMG), 210.074/274 *BA42.10-P-1002-03A
  Bleeding
DANGER Risk of poisoning from swallowing brake fluid. Risk of injury  from brake fluid coming into contact with skin and eyes. Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Brake fluid notes   AH42.50-P-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
1 Actuate master brake cylinder switchover valve (Y61) Models 129.076, 140.04/05/06/07 AR42.10-P-0010-01A
    SPECIAL TOOL Electrical connection set Figure
    IMPORTANT The switchover valve (Y61) must be open so that the annular passage in master brake cylinder is bled.
REFER TO SHOP-MADE TOOLS Wiring harness for actuation of switchover valve Model 129.067 with ESP WF58.50-P-4210-01A
2 Connect filling and bleeding device NOTES Pay attention to manufacturer's operating instructions.
Bleeding pressure 2bar 		 *WE58.40-Z-1001-07A
    FLUID SPECIFICATION Brake fluid *BF42.10-P-1001-01A
3 Carrying out bleeding operation Models 129, 140 without ASR (code 471a), without ESP (code 472)
Models 129, 140 with ASR (Code 471a) and ETS as of 1. 6. 94
Models 129.059/064/068 with/without ESP with engines 112, 113
Model 170
Model 202 without ASR (Code 471a) up to 31.5.94
Model 202 with ASR (code 471a) as of 1.6.94
Model 202 with ESP
Model 208
Model 210 without ESP, model 210 with ESP, except model 210.072/272 with ESP		 AR42.10-P-0010-02A
    SPECIAL TOOL Socket wrench Figure
    TORQUE SPECIFICATION Bleed screw on front axle fixed caliper *BA42.10-P-1002-02A
    TORQUE SPECIFICATION Bleed screw on front axle floating caliper *BA42.10-P-1002-03A
    TORQUE SPECIFICATION Bleed screw on rear axle fixed caliper *BA42.10-P-1002-01A
    Model 129 with ASR (Code 471a) up to 31.5.94 AR42.10-P-0010-02B
    SPECIAL TOOL Socket wrench Figure
    TORQUE SPECIFICATION Bleed screw on front axle fixed caliper *BA42.10-P-1002-02A
    TORQUE SPECIFICATION Bleed screw on rear axle fixed caliper *BA42.10-P-1002-01A
    Model 140 with ASR (code 471a) up to 31.5.94 AR42.10-P-0010-02C
    SPECIAL TOOL Socket wrench Figure
    TORQUE SPECIFICATION Bleed screw on front axle fixed caliper *BA42.10-P-1002-02A
    TORQUE SPECIFICATION Bleed screw on rear axle fixed caliper *BA42.10-P-1002-01A
    Model 202 with ASR (code 471a) up to 31.5.94 AR42.10-P-0010-02D
    SPECIAL TOOL Socket wrench Figure
    TORQUE SPECIFICATION Bleed screw on front axle floating caliper *BA42.10-P-1002-03A
    TORQUE SPECIFICATION Bleed screw on rear axle fixed caliper *BA42.10-P-1002-01A
    Models 129.067/076, 140 with ESP, model 210.072/272 with ESP AR42.10-P-0010-02E
    SPECIAL TOOL Socket wrench Figure
    TORQUE SPECIFICATION Bleed screw on front axle fixed caliper *BA42.10-P-1002-02A
    TORQUE SPECIFICATION Bleed screw on front axle floating caliper *BA42.10-P-1002-03A
    TORQUE SPECIFICATION Bleed screw on rear axle fixed caliper *BA42.10-P-1002-01A
4 Disconnect filler and bleeder unit, check brake fluid level and correct if necessary FLUID SPECIFICATION Brake fluid *BF42.10-P-1001-01A
TORQUE SPECIFICATION FIXED CALIPER AT REAR

Number Designation Model 129.05/06 0/061/063/ 064/066/ 067 Model 129.068/ 076 Model 140
BA42.10-P-1002-01A Bleed screw on rear axle fixed caliper NM 7 7 7
TORQUE SPECIFICATION FIXED CALIPER AT REAR

Number Designation Model 170.435/ 444/445/ 447/449/ 465 Model 170.466 Models 202.01/020/ 022/023/024/ 025/026/029/ 078/08/12/13/ 18/19, 202.028 without ASR
BA42.10-P-1002-01A Bleed screw on rear axle fixed caliper NM 7 7 7
TORQUE SPECIFICATION FIXED CALIPER AT REAR

Number Designation Models 202.028 with ASR, 202.033/093 Model 208.335/ 344/345/347/ 348/365/370/ 374/435/444/ 445/447/448/ 465/470
BA42.10-P-1002-01A Bleed screw on rear axle fixed caliper NM 7 7
TORQUE SPECIFICATION FIXED CALIPER AT REAR

Number Designation Models 210.00/01/ 02/03/04/05/06/ 070/072/074/08 Model 210.20/21/ 22/23/24/26/ 270/272/28/60/ 61/663 Models 210.274
BA42.10-P-1002-01A Bleed screw on rear axle fixed caliper NM 7 7 7
TORQUE SPECIFICATION FRONT AXLE FIXED CALIPER

Number Designation Model 129 Model 140 Model 202.028 with Code 957 (C 36 AMG)
BA42.10-P-1002-02A Bleeder screw at fixed caliper of front axle NM 7 7 7
TORQUE SPECIFICATION FRONT AXLE FIXED CALIPER

Number Designation Model 208.370/ 470 up to 18.01.99 except USA ONLY Model 210.055 with Code 957 (E 36 AMG) Model 210.072/270/272 up to 07.02.99, model 210.070 up to 07.02.99 except USA ONLYJAPAN ONLYAUSTRALIA ONLY
BA42.10-P-1002-02A Bleeder screw at fixed caliper of front axle NM 7 7 7
TORQUE SPECIFICATION FRONT AXLE FLOATING CALIPER

Number Designation Model 170.435/ 444/445/ 447/449/ 465 Model 170.466
BA42.10-P-1002-03A Bleed screw on front axle floating caliper NM 7 7
TORQUE SPECIFICATION FRONT AXLE FLOATING CALIPER

Number Designation Models 202.018/020/ 022/023/078/ 080/081/083/ 087/120/121/ 122/125/133/ 134/180/182/ 193/194, 202.028 up to 08/95 Models 202.024/025/02 6/029/082/085/ 086/088/089/ 128/188, 202.028 as of 09/95
BA42.10-P-1002-03A Bleed screw on front axle floating caliper NM 7 7
TORQUE SPECIFICATION FRONT AXLE FLOATING CALIPER

Number Designation Model 202.033/093, 208.374, 210.072 with Code 957 (E50 AMG), 210.074/274 Models 208.335/344/34 5/347/348/365/ 435/444/445/ 447/448/465, 208.370/470 USA ONLY
BA42.10-P-1002-03A Bleed screw on front axle floating caliper NM 7 7
TORQUE SPECIFICATION FRONT AXLE FLOATING CALIPER

Number Designation Model 208.370/470 as of 19.01.99, except USA ONLY Model 210.00/01/ 02/035/037/04/ 05/06/08/20/21/ 22/23/24/26/28/ 60/61/663, except model 210.083/283 as of 08.02.00 Model 210.070 USA ONLYJAPAN ONLYAUSTRALIA ONLY
BA42.10-P-1002-03A Bleed screw on front axle floating caliper NM 7 7
TORQUE SPECIFICATION FRONT AXLE FLOATING CALIPER

Number Designation Model 210.083/270/ 283 as of 08.02.99, model 210.070 as of 08.02.99 except USA ONLYJAPAN ONLYAUSTRALIA ONLY
BA42.10-P-1002-03A Bleed screw on front axle floating caliper NM 7
FLUID SPECIFICATION BRAKE FLUID

Number Designation Model 129 Model 140 Model 170
BF42.10-P-1001-01A Brake fluid Filling quantity Liters ≈ 0,45-0,6 ≈ 0.7-0.9 ≈ 0,45-0,6
Specifications for Operating Fluids Sheet BB00.40-P-0330-01A BB00.40-P-0330-01A BB00.40-P-0330-01A
  Sheet BB00.40-P-0331-00A BB00.40-P-0331-00A BB00.40-P-0331-00A
FLUID SPECIFICATION BRAKE FLUID

Number Designation Model 202 Model 208 Model 210
BF42.10-P-1001-01A Brake fluid Filling quantity Liters ≈ 0,45-0,6 ≈ 0,45-0,6 ≈ 0,45-0,6
Specifications for Operating Fluids Sheet BB00.40-P-0330-01A BB00.40-P-0330-01A BB00.40-P-0330-01A
  Sheet BB00.40-P-0331-00A BB00.40-P-0331-00A BB00.40-P-0331-00A
Fig 2: Identifying Electrical Connection Set (201 589 00 99 00)
G04635472
Fig 3: Identifying Socket Wrench (140 589 03 09 00)
G04635473
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1036-13A Handheld tester (HHT) 651 100 01 99
WH58.30-Z-1037-13A Test cable (multiplexer) 651 100 40 99
WORKSHOP EQUIPMENT

WE58.40-Z-1001-07A Brake fluid replacement unit
