Connecting diagram of intake manifold - AR09.20-P-1310-01DA

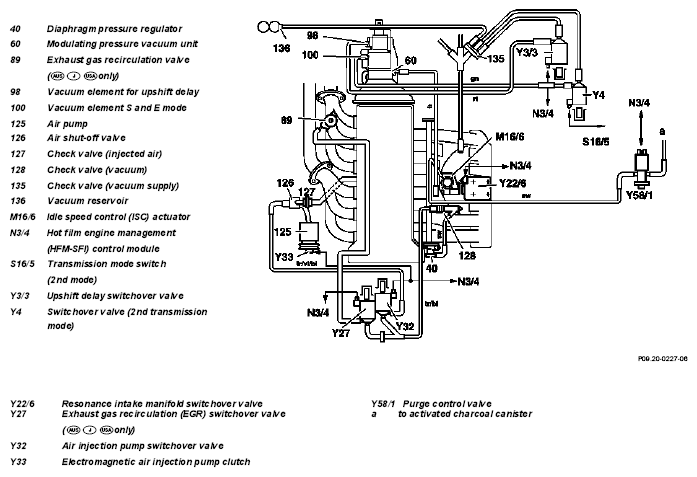

Connecting diagram of vacuum supply HFM-SFI model 124, 129

Fig 1: Connecting Diagram Of Vacuum Supply HFM-SFI
