Removal (Chassis 129)
- Drain radiator coolant. See DRAIN, FILL & BLEEDING COOLING SYSTEM
.
- Remove viscous fan (1). See COOLING FAN & VISCOUS FAN CLUTCH
.

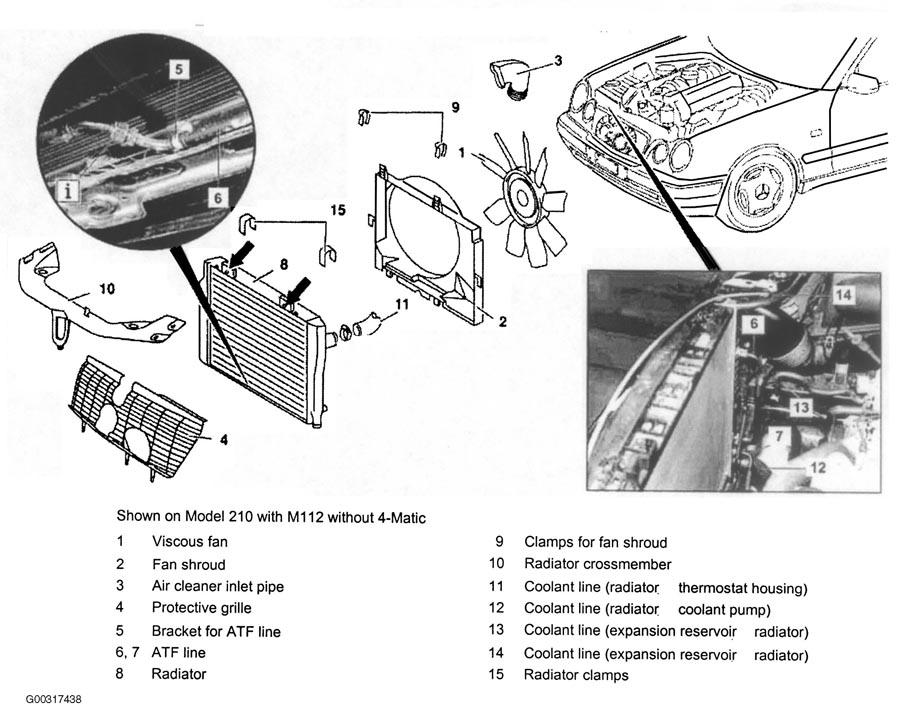

- Remove fan shroud (2). See Fig 1
.
- Discharge (recycle) air conditioning system. See appropriate A/C-HEATER SYSTEMS - AUTOMATIC article in CLIMATE CONTROL.
- Remove cable strap.
- Remove radiator cover (3).
- Remove horns (place to the side).
- Disconnect harness plug connector (M4x1) from fans.
- Disconnect coolant lines (4, 5)
- Disconnect coolant lines (6, 7)
- Remove ATF lines (8, 9). See Fig 1
. Seal off open connections. See SPECIAL TOOLS
.
- Remove bracket (10) of ATF line (8) at radiator (11).
- Remove clamps (12).
- Remove condenser with radiator (11).
- Remove auxiliary fans. See AUXILIARY FANS ASSEMBLY
.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
