Removing and installing instrument cluster housing - AR54.30-P-6031CS

MODEL 129

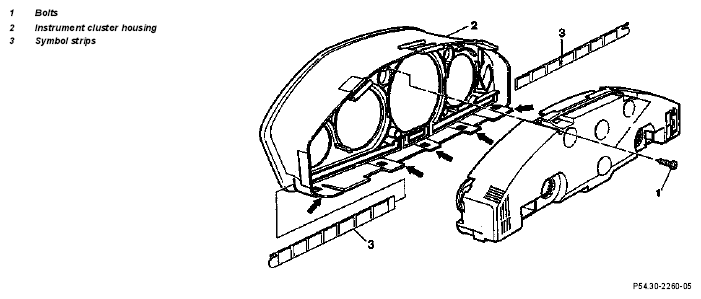

Fig 1: Identifying Instrument Cluster Housing Components

	Removal, installation
1	Remove instrument cluster		AR54.30-P-6015EA
2	Unscrew screws (1)
3	Unclip retaining lugs (arrows)
4	Remove instrument cluster housing (2)	Installation  : Ensure that reset knob for trip odometer and adjustment knob for electronic clock are positioned properly.
5	Remove symbol strips (3) toward side
6	Install in the reverse order
