Adjusting steering gear in vehicle - RA46001243230X(46-3230)

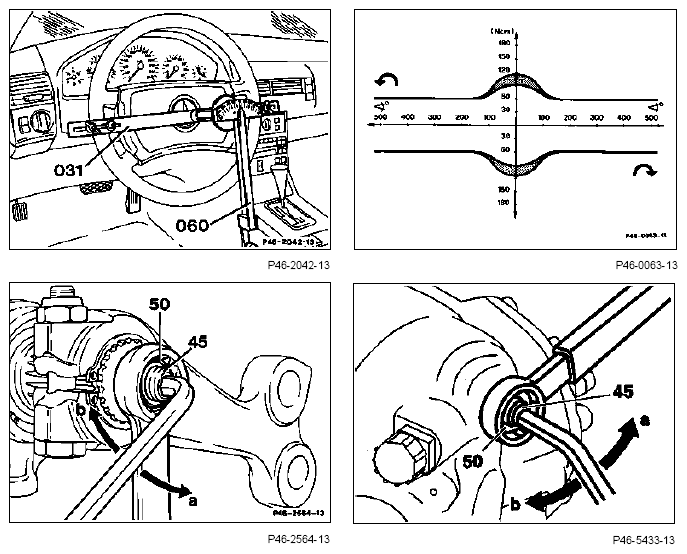

Fig 1: Adjusting Steering Gear In Vehicle

Tie rod and drag link	Disassemble and assemble on pitman arm (46-6177, 46-7007).
Support (031) and torque wrench (060)	Fix to steering wheel, remove
Friction torque of steering gear	Determine by slowly turning the steering wheel from lock to lock several times
Friction torque of steering gear	Adjust, by slackening lock nut (50) and turning adjusting screw (45) 1/4 turn in stages direction a = less play = increased friction torque direction b = more play = reduced friction torque Tighten lock nut (50), 60 Nm.
Friction torque of steering gear	Check again after tightening the lock nut (50) and repeat adjustment, if necessary.
	Adjusting wrench on vehicles with diesel engines	123 589 01 09 00.
	Adjusting wrench on vehicles with gasoline engines	123 589 01 10 00, 123 589 01 03 00.

SET VALUE (NCM)

Total friction torque of steering gear in center position

New steering

110-160

Used steering

100-130⁽¹⁾

⁽¹⁾	On vehicles with airbag 110-140 (without contact spiral)

Special tools

Fig 2: Identifying Special Tools (123 589 02 21 00)

Fig 3: Identifying Special Tools (126 589 13 63 00)

Fig 4: Identifying Special Tools (123 589 01 09 00)

Fig 5: Identifying Special Tools (123 589 01 10 00)

Fig 6: Identifying Special Tools (123 589 01 03 00)
