Removal & Installation (210 Chassis)

  1. Turn 2 plastic clips (2) 90 degrees and remove grill (1). See Fig 1 .
  2. Unclip cover (5) and remove cover.
  3. Disconnect auxiliary fan harness connector (X64/4).
  4. Pull off clips (6).
  5. Remove fasteners (4) and remove radiator cross member.
  6. Place hood pull cable to rear out of way.
  7. Unclip harness wire (9) on cross member, remove fastener (8) and hang brace (7) with horn to side.
  8. Remove 2 fasteners (11) from auxiliary fan assembly.
  9. Unclip 6 plastic clips (arrows) and remove auxiliary fan assembly shroud (10). See Fig 2 .
  10. Remove poly V-belt (13) from fan motor M4.
  11. Remove 3 fasteners (12) and remove fan motor M4 fan assembly.
  12. Installation is reverse of removal procedure.

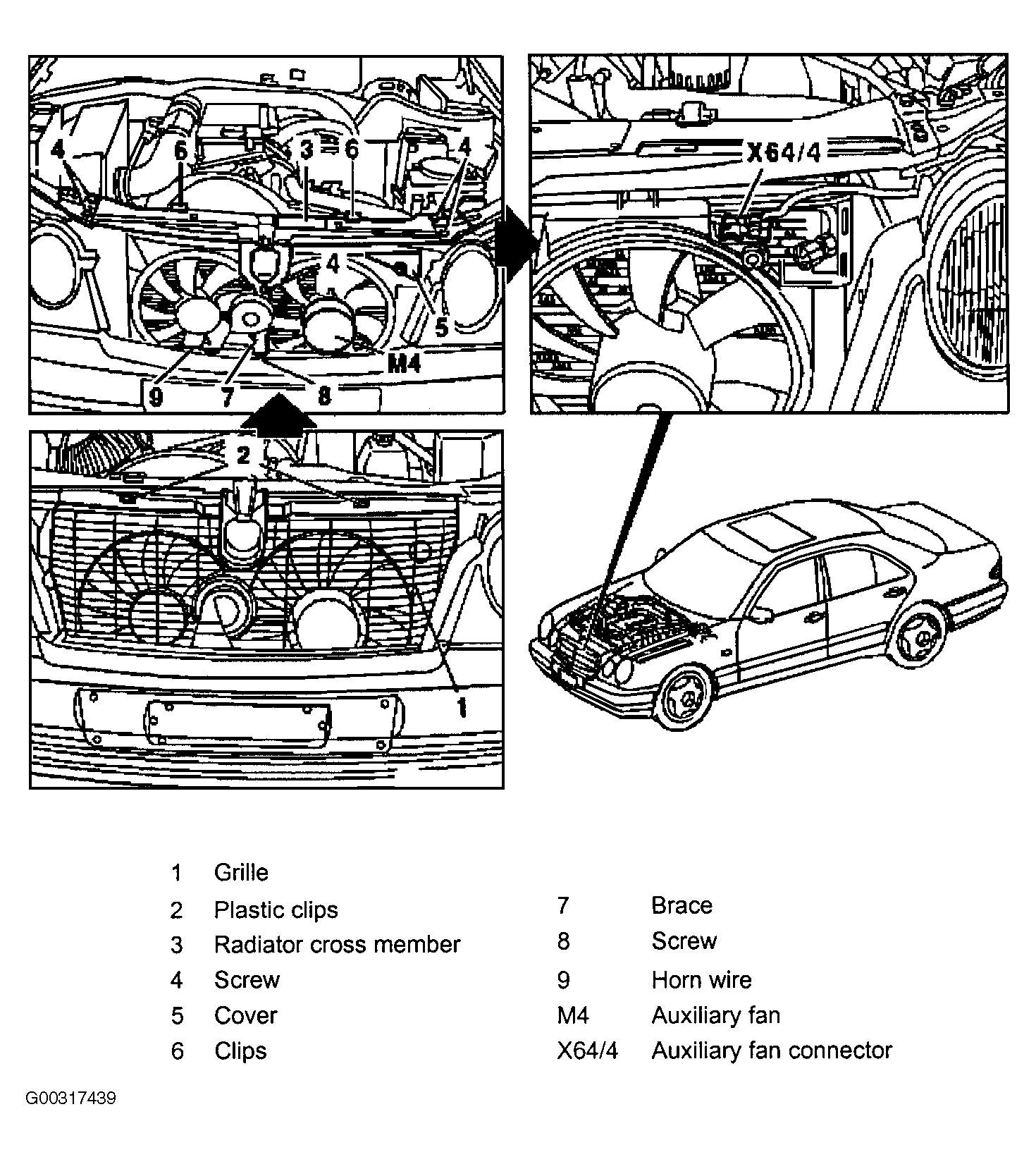

Fig 1: Removal & Installation Of Auxiliary Fan Assembly
G00317439Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

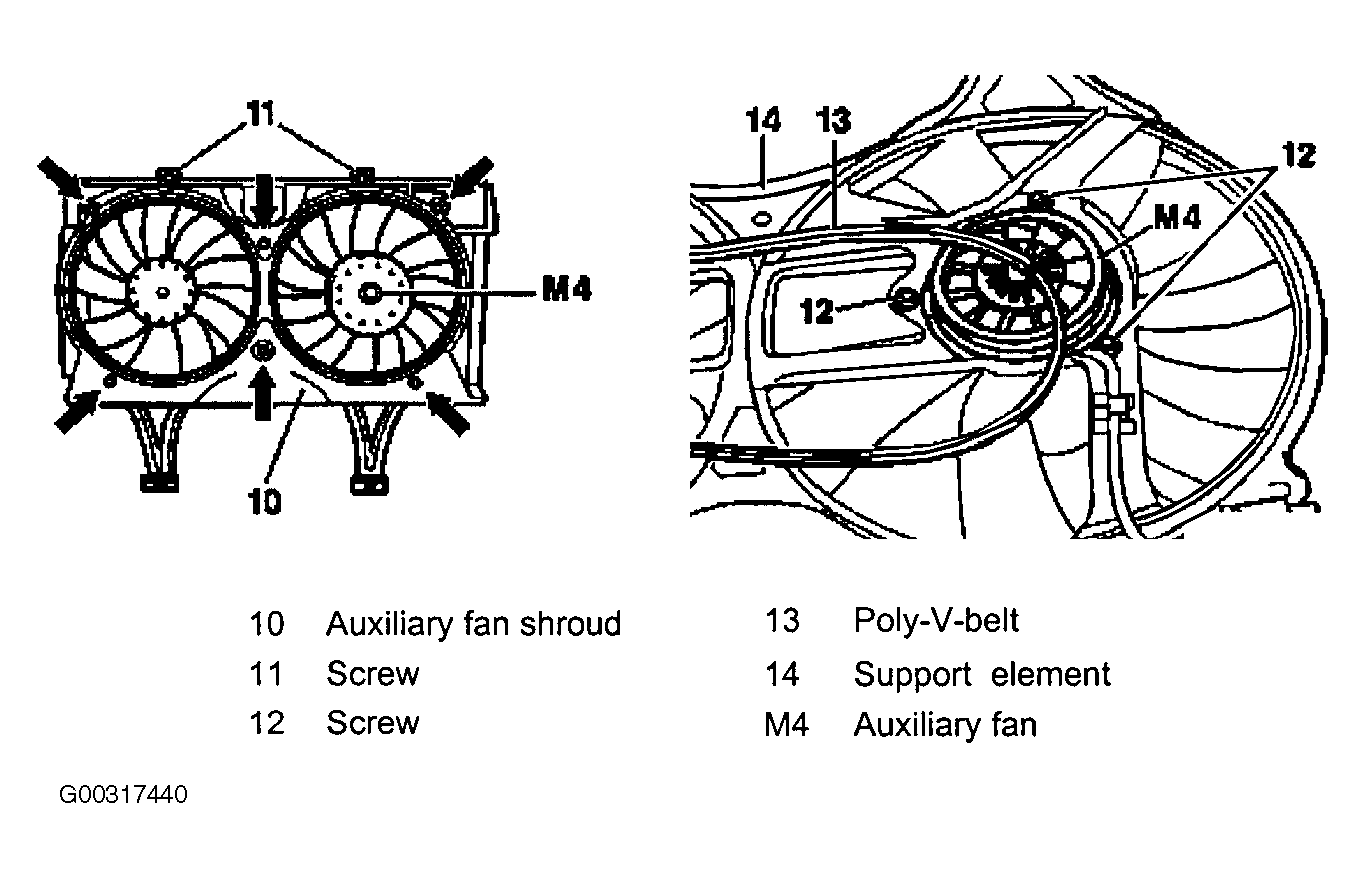

Fig 2: Removal & Installation Of Auxiliary Fan Motor
G00317440Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
