Removing and installing intake scoop - AR09.10-P-8221FA

ENGINE 120.981/983

in MODEL 129

Left intake scoop illustrated

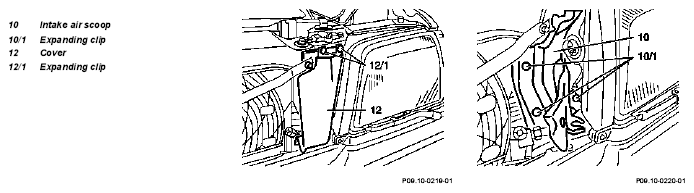

Fig 1: Identifying Intake Scoop Remove/Install Components
G04678448
Fig. item, etc. Work instructions
10 Intake air scoop Pull out expanding clip (10/1)
12 Cover Pull out expanding clip (12/1)
