Removing and installing intake scoop - AR09.10-P-8221EB
ENGINE 119.97
in MODEL 129

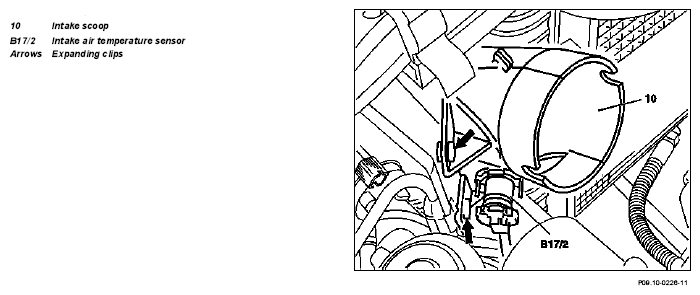

Left intake scoop illustrated
| Fig. item, etc. |
Work instructions |
|
|
| B17/2 |
Coupling of intake air temperature sensor |
detach at left intake scoop |
|
| Arrows |
Expanding clips |
remove |
|
