Removing and installing display instruments in instrument cluster - AR54.30-P-6111CS
MODEL 129 up to 31.10.93

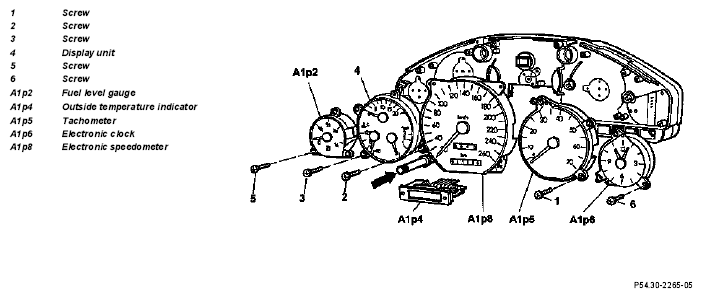

| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Remove instrument cluster | AR54.30-P-6015EA | ||
| Remove instrument cluster housing | AR54.30-P-6031CS | ||
| 4 | Display unit | ||
| A1p2 | Fuel level gauge | ||
| A1p4 | Outside temperature indicator | Remove electronic speedometer. | |
| A1p5 | Tachometer | ||
| A1p6 | Electronic clock | ||
| A1p8 | Electronic speedometer | Ensure that reset knob (arrow) of trip counter is positioned properly. |
