Electronic stability program (ESP), location of hydraulic components - GF42.45-P-0001-02A

Model 129 with engines 104, 119, 120

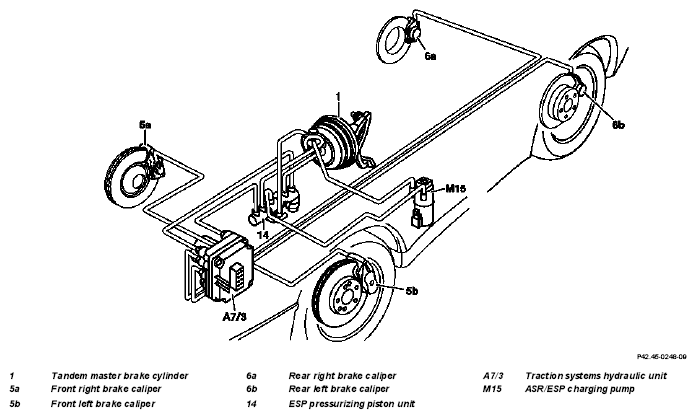

Fig 1: Identifying Electronic Stability Program (ESP), Location Of Hydraulic Components
G04685674
