TELE AID block diagram - GF82.95-P-0001-02A

IMPORTANT Instead of N2/2 the following are integrated in models 215, 220:

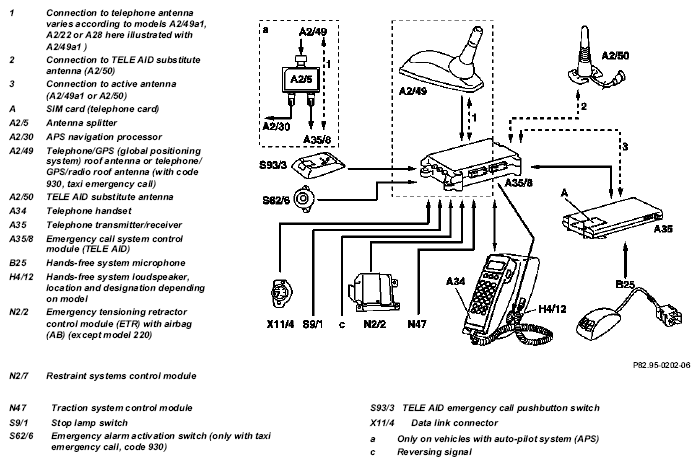

Fig 1: Identifying TELE AID Block Diagram (1 Of 3)
G04633693
