Global positioning system antenna location/purpose/design/function - GF82.61-P-4106P: Notes
MODELS 203, 210, 220 with CODE (855) TELE AID with CODE (930) Taxi emergency call system
MODELS 208.3, 215 with CODE (855) TELE AID
Model 203

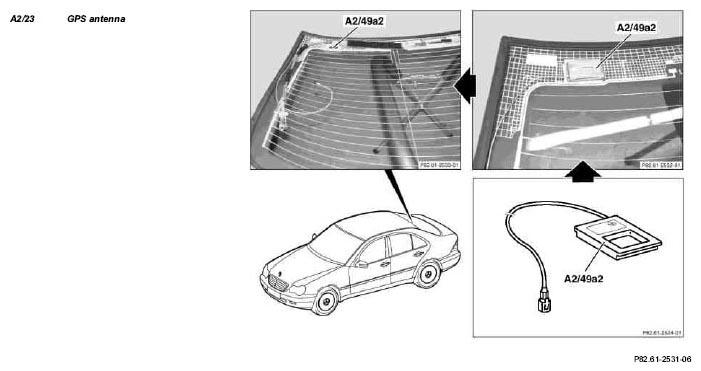

The Global Positioning System (GPS) antenna is stuck to the rear window in the 203 model
Fig 1: Identifying Global Positioning System Antenna Function - Models 203, 210, 220 With Code (855) Tele Aid With Code (930)
| Global positioning system antenna, location | Model 215 | GF82.61-P-4106-01D | |
| Models 208.3, 210, 220 | GF82.61-P-4106-01E | ||
| Global positioning system antenna, purpose | Reception and amplification of the global positioning system (GPS) satellite signals. | ||
| Global positioning system antenna, design | The GPS antenna consists of a microwave antenna (receive frequency in gigahertz range) and an antenna booster. The power supply comes from the coaxial antenna cable. An antenna splitter may be required depending on the configuration. | ||
| Global positioning system antenna, function | GF82.61-P-4106-04P |
