Remove/install air suspension control unit - AR32.22-P-6000I
MODEL 220 except CODE (487a) Active body control (ABC)

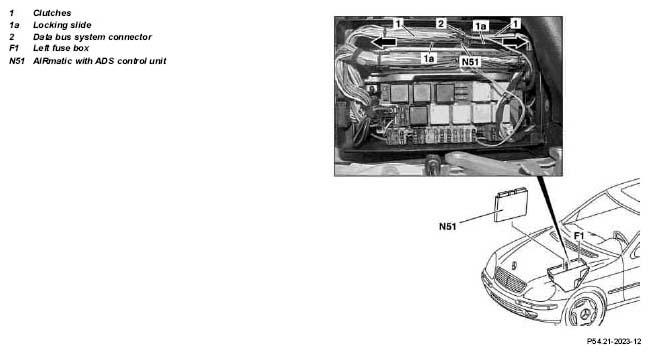

Fig 1: Identifying Locking Slide, Data Bus System Connector, Left Fuse Box And AIRmatic With ADS Control Unit
| Remove/Install | |||
| 1 | Connect no load current retention unit | AR54.10-P-1030-07I | |
| 2 | Disconnect ground cable of battery | AR54.10-P-0003I | |
| 3 | Open engine hood and position upright | AR88.40-P-1000M | |
| 4 | Unlock and remove cover of left fuse box (F1) | ||
| 5 | Pull out locking slide (1a) of the two couplings (1) on the AIRmatic with ADS control unit (N51) in direction of arrow as far as the stop and remove connections. | ||
| 6 | Disconnect connector of data bus system (2) from AIRmatic with ADS control unit | ||
| 7 | Remove AIRmatic with ADS control unit upwards out of left fuse box | ||
| 8 | Install in the reverse order |
