Remove/install |
|
|
 |
Notes on active body control suspension |
|
AH32.50-P-0001-01N |
| 1 |
Detach left air intake hose |
|
|
| 2 |
Remove fan shroud |
|
AR20.40-P-6800AB |
| 3 |
Undo bolts from belt pulley (41). |
Counterholder |
Fig 4 |
| |
|
 |
*BA46.30-P-1007-01C |
| 4.1 |
Remove poly-V-belt for supercharger |
Only model 215.374, 220.074/174. |
AR13.21-P-1202RVK |
| 5.1 |
Remove poly-V belt (130) |
Only model 215.378, 220.178. |
AR13.22-P-1202BA |
| |
|
Only model 215.374, 220.074/ 174. |
AR13.22-P-1202R |
| 6 |
Drain coolant |
|
AR20.00-P-1142HA |
| 7 |
Remove left coolant hose. |
|
|
| 8 |
Unplug connector from ABC suction restrictor valve (Y86/1) |
|
|
| 9 |
Unbolt belt pulley (41) |
|
|
| 10 |
Pinch off feed line of ABC reservoir (58) from ABC reservoir and detach |
Clamping device |
Figure |
| 11 |
Clamp off and detach feed line (30f) from power steering pump supply reservoir. |
Clamping device |
Figure |
| 12 |

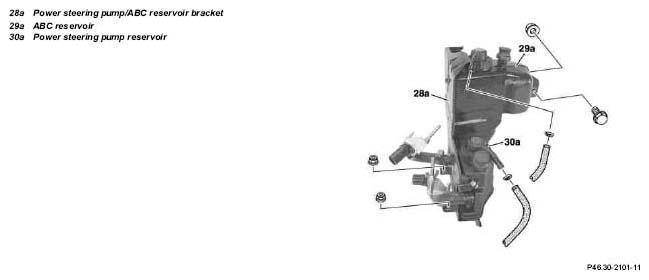

Unclip suction restrictor valve line from power steering pump/ABC reservoir bracket (28a) |
|
|
| 13 |
Detach lines of power steering pump reservoir (30a) and ABC reservoir (29a). |
|
|
| 14 |
Detach and remove power steering pump/ABC reservoir bracket (28a) |
Fastened with two nuts and one bolt. |
|
| 15 |

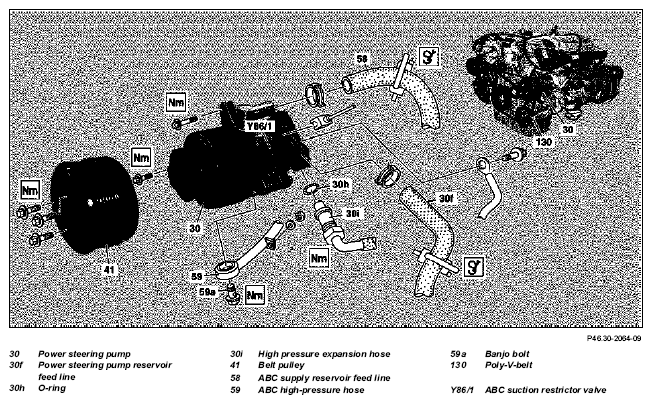

Unscrew high-pressure expansion hose (30i) |
Seal off line connection with blind plug.
Installation:
inspect O-ring (30h) and replace if necessary. |
|
| |
|
|
*BA46.30-P-1003-01C |
| 16 |
Unscrew ABC high-pressure hose (59) |
Installation:
check O-rings on ABC high-pressure hose (59) and replace if necessary. Fit the bracket first. |
|
| |
|
Banjo bolt (59a) |
*BA46.30-P-1012-01C |
| 17 |
Disconnect ground cable at rear to power steering pump |
|
|
| 18 |
Unscrew bracket from ABC high-pressure hose (59) |
|
|
| 19 |
Detach and remove power steering pump (30) |
Tie lines back to the side or disconnect if necessary.
Installation:
Long bolts at the top, short bolts at the bottom.
Replace self-locking bolts, if necessary; pay attention to the following instructions:
- Never retap the thread.
- Use original bolts only.
- Do not hold bolts at an angle when screwing in.
- Do not use an impact wrench.
|
|
| |
|
Self-tapping bolts of power steering pump to timing case |
*BA46.30-P-1010-01C |
| 20 |
Install in the reverse order |
|
|
| 21 |
Fill and bleed active body control (ABC) |
|
AR32.50-P-0021N |
| 22 |
Fill power steering pump and bleed |
|
AR46.30-P-0010N |
