Remove/install armrest at rear seat backrest - AR91.12-P-1745MB

MODELS 220.0 /1 with CODE (223b) Electrically adjustable rear bench seat with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

Shown on vehicle with electrically adjustable rear bench seat, code 223b

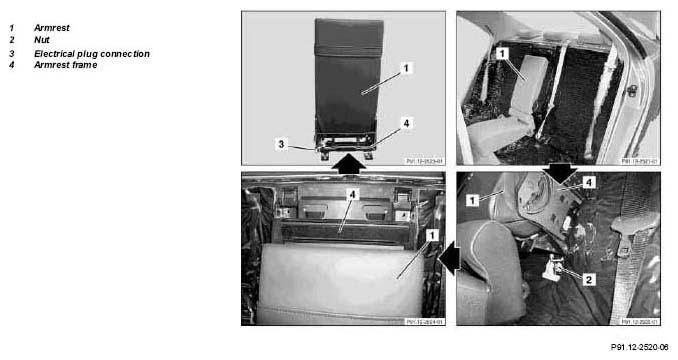

Fig 1: Identifying Armrest At Rear Seat Backrest Remove/Install Components - Models 220.0 /1

	Remove/Install
1	Remove rear seat backrest	Removing left and right rear seat backrests.
		Electrically adjustable rear set bench, code 223b.	AR91.12-P-1620M
		Rear single seats, electrically adjustable, with seat ventilation, seat heater and memory package, code 224c.	AR91.12-P-1620MB
2	Unscrew nuts (2, 2 pcs.) from armrest frame (4)
3	Remove armrest frame (4) from rear wall	Upper fastening points are attached to seat backrests.
4.1	Separate electrical plug connection (3)	With 2nd handset in rear armrest, code 856.
5	Remove armrest (1) with armrest frame (4)	Installation:  Align armrest frame (4) in relation to rear wall.
6	Install in the reverse order
