Recall Campaign 2007060002 - Replace Active Body Control (ABC) High Pressure Distribution Hose (M113 Engine) (2007060002)
Publication date: 2007-06-29Reference number: 2007060002
RECALL CAMPAIGN 2007060002 - REPLACE ACTIVE BODY CONTROL (ABC) HIGH PRESSURE DISTRIBUTION HOSE (M113 ENGINE)
SERVICE CAMPAIGN BULLETIN
| MERCEDES-BENZ: | MODELS 215, 220 MODEL YEARS 2000-2004 |
| GROUP: | 00 OF SERVICE INFORMATION BINDER; |
| GROUP: | I OF INFORMATION - PARTS & ACCESSORIES BINDER |
SUBJECT
MODELS 215, 220
MODEL YEARS 2000-2004
REPLACE ACTIVE BODY CONTROL (ABC) HIGH PRESSURE DISTRIBUTION HOSE (M113 ENGINE)
This Recall Campaign has been initiated because DCAG has determined that on affected vehicles corrosion may occur in the inner steel portions of the Active Body Control's high-pressure distribution hose due to extensive exposure to humidity. Over time, corrosion may deteriorate the inner steel portions of the ABC's high-pressure distribution hose. This may result in ABC hydraulic fluid leakage near the catalytic converter of the subject vehicles. Under some circumstances leaking hydraulic fluid may come in contact with hot engine components and lead to a possibility of fire.
Prior to performing this Recall Campaign:
- Please check VMI to insure the vehicle is involved in the Campaign and if it has been previously repaired.
- Please review the entire Recall Campaign bulletin and follow the procedure steps exactly as described.

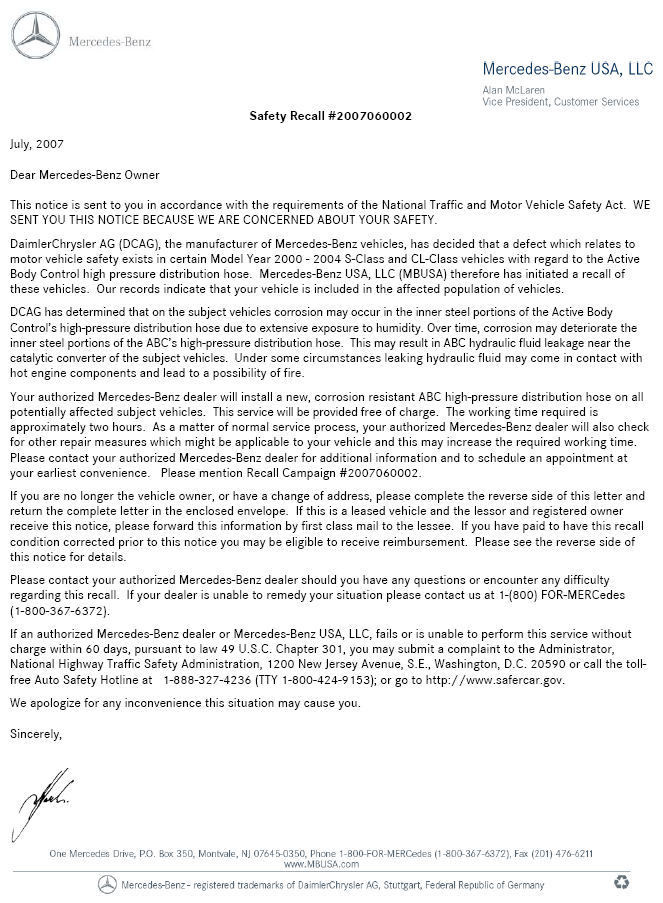

Attached is a sample copy of a letter which owners of the affected vehicles will receive.
Approximately 19,824 vehicles are affected.
PROCEDURE
- Replace ABC high-pressure hose for pressure supply valve unit to front/rear axle distributor; refer to WIS document AR32.50-P-0005M.
SPECIAL TOOLS
PARTS INFORMATION
| Qty. | Part Name | Part Number | Estimated Replacement Rate |
|---|---|---|---|
| 1 | Hydraulic Line | A 220 320 04 54 05 | 100% |
| 1 | Pentosin Hydraulic Fluid | BQ 132 0001 |
- Please be aware that only the part number(s) referenced in the Campaign Bulletin is approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.
- Please note that the information in the most current versions of EPC and StarTime supersedes the parts and warranty information in the Campaign Bulletin.
- The following allowable labor operation should be used when submitting a warranty claim for this repair:
WARRANTY INFORMATION
Operation:
- Active Body Control (ABC) Hydraulic Line for Pressure Supply Valve Unit to Front Axle/Rear Axle Distributor (02-5719)
| Damage Code | Operation Number | Labor Time (hrs.) | Model Indicator(s) |
|---|---|---|---|
| 32 950 21 7 | 02-5719 | 1.5 | M1, M2, M5, M9, N1, N3, N5 |

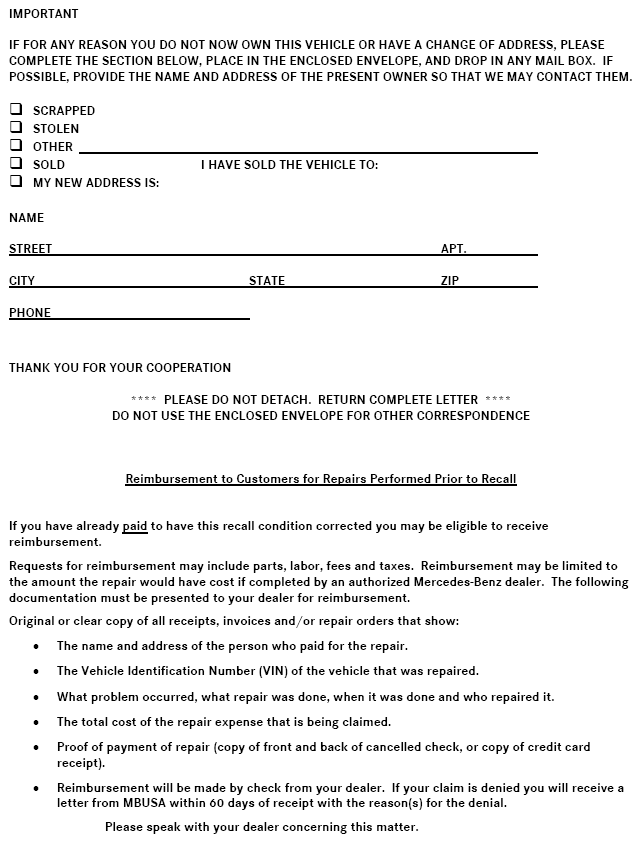

NOTE REGARDING CUSTOMER REIMBURSEMENT
Reimbursement to customers for repairs performed prior to this recall:
If the customer already paid to have this recall campaign condition repaired and provides adequate documentation to support their claim of a non-warranty repair of this item, they may be eligible to receive reimbursement.
Requests for reimbursement may include parts, labor, fees and taxes.
Reimbursement is limited to the amount the repair of the ABC hydraulic line and fluid would have cost if completed by an authorized Mercedes-Benz dealer under this campaign.
Submit a warranty claim, utilizing Damage Code 32950218 as a sublet, utilizing the sublet code of "SUB."
Sublet repairs require dealer text as stated in the Warranty Policies and Procedures Manual. Repair date should be the date that the customer paid for the repair.
