Service Campaign 2005030003 - Seal Lower Strip On Doors (2005030003)

Publication date: 2005-04-01
Reference number: 2005030003

SERVICE CAMPAIGN 2005030003 - SEAL LOWER STRIP ON DOORS

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 2005030003, Date of Issue: May 25, 2005

Mercedes-Benz:

Models 203/209/220

Superceded Bulletin(s): 2005030003, Date of Issue: April 2005

SUBJECT

MODELS 203/209/220

SEAL LOWER STRIP ON DOORS

SERVICE INFORMATION

This revised Service Campaign bulletin 2005030003 supersedes previously issued Service Campaign bulletin 2005030003 released in April 2005. It contains updated warranty information to allow the repair of noticeable corrosion under certain conditions. Please destroy all previous Service Campaign bulletin versions.

This Service Campaign has been initiated because DCAG has determined that on the affected vehicles (see VIN range below) the seal at the bottom of the doors may be insufficient and requires additional sealing material.

Please review the Effective Serial Number chart located below and if necessary repair the subject vehicles during the vehicle's next service.

Prior to performing this Service Campaign:

Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.
Please review the entire Service Campaign bulletin.

Approximately 212,885 vehicles are affected.

EFFECTIVE SERIAL NUMBER RANGE

Models	Chassis End Number
Models	From	To
203.004	A 385332	A 385332
203.006	A 152847	A 145594
203.016	A 226483	A 278483
203.035	A 281195	A 176875
203.040	A 420140	A 480000
203.040	F 340793	F 380000
203.042	F 298052	F 298052
203.045	A 036346	A 179058
203.061	A 331679	A 379988
203.064	A 030687	A 379979
203.065	F 131482	F 379891
203.081	F 294962	F 379994
203.084	F 317432	F 379998
203.206	F 123770	F 300913
203.216	F 222316	F 298052
203.242	F 356711	F 356711
203.261	F 297721	F 379987
203.261	F 288707	F 288707
203.264	F 051490	F 379799
203.281	F 298053	F 379990
203.284	F 317403	F 379978
209.365	F 000185	F 039980
209.375	F 000313	F 039931
209.376	F 019833	F 039763
209.465	T 000079	T 000350
209.475	T 000115	T 000133
220.026	A 292026	A 292026
220.065	A 018251	A 288116
220.070	A 001283	A 318206
220.075	A 027147	A 139667
220.165	A 036763	A 248311
220.170	A 000243	A 334879
220.173	A 156497	A 301296
220.174	A 306185	A 334820
220.175	A 000342	A 334848
220.176	A 308326	A 334866
220.178	A 126288	A 301668
220.183	A 310904	A 334841
220.184	A 308819	A 334847
220.875	A 000003	A 229602

PROCEDURE

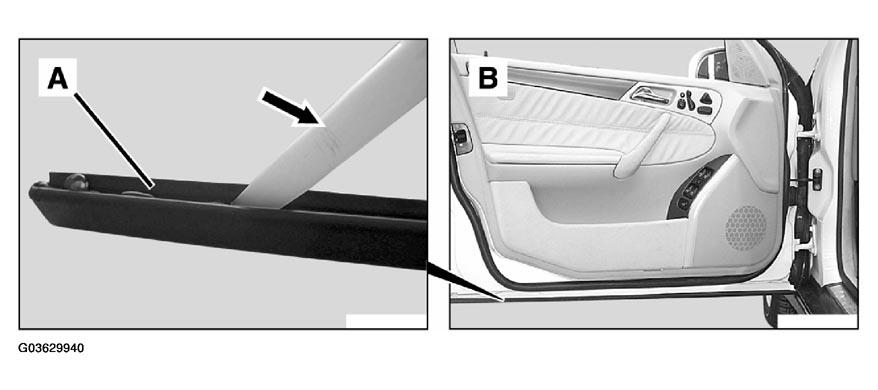

Fig 1: Removing Lower Door Strip

Remove lower door strip (A, Fig 1).
NOTE:
- Be careful not to bend door strip (A) when removing.
- Observe installed position of door strip (A) before removing to ensure proper positioning when reinstalling.
Check to see if any corrosion is present on the door contact area. If corrosion is present, refer to WIS: GF98.00-U-9200A for proper evaluation and repair procedures before proceeding.
NOTE:
- Only approved repair materials are to be used for corrosion repairs. Refer to Star Bulletin S-B-98.00/13V for a list of approved materials.
- If you are unable to view the WIS document on WIS-Net, please check to see that the language settings are set correctly (Priority 1: US English, Priority 2: English.)
Thoroughly clean lower door strip (A, Fig 1) and door contact area with silicone remover (shop supplies) and dry area with compressed air.
NOTE:
- To ensure proper adhesion, there must be no cleaning agent residues remaining on contact surfaces.
Insert nozzle of sealing agent cartridge (arrow, Fig 1) into door strip (A) as far as possible then fill lower door strip (A) with sealing compound.
NOTE: The door strip is properly filled with sealing compound when the compound is clearly visible.
Reinstall lower door strip (A, Fig 1) onto door.
Clean any excess compound from door and lower door strip (A).
Repeat procedure on all doors.

NOTE: The following allowable labor operation should be used when submitting a warranty claim for this repair:

WARRANTY INFORMATION

VEHICLES WITH 2 DOORS

Operation: Seal - Lower strip on doors (2), repair (02-4531)

WARRANTY INFORMATION - VEHICLES WITH 2 DOORS

Damage Code	Operation Number	Labor Time (hrs.)	Model Indicator(s)
72 900 38 7	02-4531	0.3 hrs.	S1, S2, S3, S4

Parts Information

PARTS INFORMATION - VEHICLES WITH 2 DOORS

Qty.	Part Name	Part Number
1	Terostat sealant (for 8 cars)	A004 989 29 20 05

NOTE: For vehicles with 2 doors:

Submit as local purchase; SEAL2D00280, quantity of 1 (handling is included).

See Note below for corrosion repairs.

VEHICLES WITH 4 DOORS

Operation: Seal - Lower strip on doors (4), repair (02-4544)

WARRANTY INFORMATION - VEHICLES WITH 4 DOORS

Damage Code	Operation Number	Labor Time (hrs.)	Model Indicator(s)
72 900 38 7	02-4544	0.5 hrs.	M1, M2, M3, M4, M6, M7, M8, M9, P1, P2, P3, P4, P6, P7, P8, P9, Q2, Q3

Parts Information

PARTS INFORMATION - VEHICLES WITH 4 DOORS

Qty.	Part Name	Part Number
1	Terostat sealant (for 4 cars)	A004 989 29 20 05

NOTE: For vehicles with 4 doors:

Submit as local purchase; SEAL4D00560, quantity of 1 (handling is included).

See Note below for corrosion repairs.

Note- Corrosion Repairs: If the vehicle requires corrosion repair based on the referenced WIS document, submit for reimbursement utilizing damage code 72 900 38 7. Damage code 72 900 38 7 is only claimable once for all required repairs. If "sublet" work is required (paint repair etc), submit as a "sublet" with sublet code of "SUB". In addition, dealer text will require the "Rust Rating" (for example, Rust Rating 4). All rust repairs require photo and supporting documentation to be placed in vehicle history file attached to the repair order.

NOTE: Please be aware that only the part number(s) referenced in the Campaign Bulletin is/are approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign.
