Routing diagram of poly-V-belt - AR13.22-P-3902-02RVK

Shown on engine 113.992

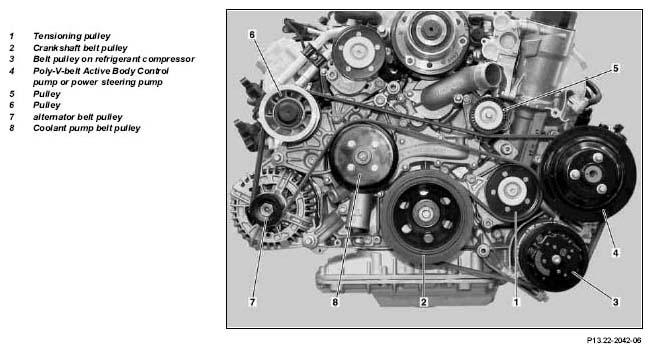

Fig 1: Routing Diagram Of Poly-V-Belt - Shown On Engine 113.992

G04840109
