Remove |
|
|
 |
Risk of death
caused by contact with parts conducting high voltages. |
Do not touch parts which conduct high voltages. Persons who have electronic implants (e.g. pacemakers) must not perform any work on the ignition system. |
AS15.10-Z-0001-01A |
| 1 |
Remove air cleaner |
|
AR09.10-P-1050L |
| 2 |

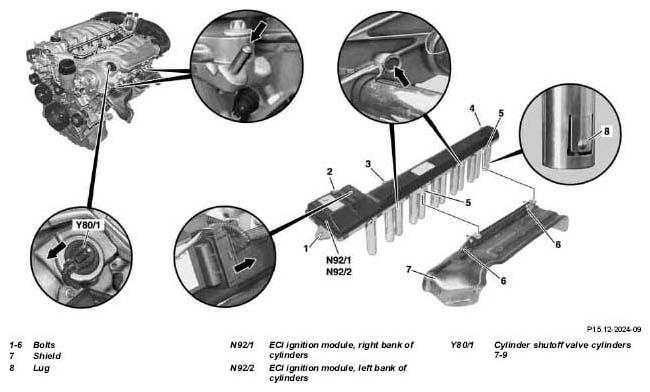

Unplug connector (arrow) of electrical connection of cylinder shutoff valve 7-9 (Y80/1) |
When removing the left ignition module. |
|
| 3 |
Unplug connector (arrow) of electrical connection of ECI ignition module (N92/1, N92/2) |
|
|
| 4 |
Release fuel pressure through service valve |
Collect fuel. |
|
| |
|
 |
Fig 2 |
| |
|
|
Fig 3 |
| 5 |
Remove complete fuel feed line |
When removing the left ignition module. Collect fuel.
 Removal:
It is not permissible to bend fuel feed line out of the way. There is a risk of splits forming at the fuel rail, and also at the fuel feed line. |
|
| 6 |
Separate plug connections of sensors |
|
AR14.00-P-5303L |
| 7 |
Unscrew bolts (1, 2, 3, 4 and 6) |
|
|
| 8 |
Loosen bolts (5) |
|
|
| 9 |
Lower shield (7) |
|
|
| 10 |
Pull ECI ignition module (N92/1, N92/2) evenly off the spark plugs |
|
Fig 4 |
 |
Install |
|
|
| 11 |
Fit ECI ignition module (N92/1, N92/2) onto the spark plugs and press on evenly by hand until the dowel pins are located in the guides |
Installation:
Do not strike the ignition module; otherwise, there is a risk of damaging it. The gaskets of the ignition modules to the spark plugs must be replaced each time they are removed. Make sure that the spark plug connector lugs (8) are not bent to the inside. They must be in contact with the spark plug bore (cylinder head). |
|
| |
|
|
Fig 5 |
| 12 |
Install shield (7) |
 |
*BA15.12-P-1003-01D |
| 13 |
Slightly tighten bolts (1, 2, 3, 4 and 6) alternately |
|
|
| 14 |
Slightly tighten bolts (5) |
|
|
| 15 |
Fully tighten bolts (1, 2, 3, 4 and 6) alternately |
Specified torque value must be strictly observed. |
|
| |
|
|
*BA15.12-P-1001-01D |
| 16 |
Tighten screws (5) |
Specified torque value must be strictly observed. |
|
| |
|
|
*BA15.12-P-1002-01D |
| 17 |
Fit together plug connections of sensors |
|
AR14.00-P-5303L |
| 18 |
Install fuel feed line (17/2) completely |
|
*BA07.52-P-1001-01A |
| 19 |
Plug on connector (arrow) of electrical connection at ECI ignition module (N92/1, N92/2) |
|
|
| 20 |
Plug in connector (arrow) of electrical connection of cylinder shutoff valve 7-9 (Y80/1) |
|
|
| 21 |
Install air cleaner |
|
AR09.10-P-1050L |
| 22 |
Read out fault memory and erase if necessary |
Stored faults possibly caused by previous simulation or by cables disconnected in the process of installation or testing must be processed and erased in the DTC memories once all work is completed. See ↓ STAR DIAGNOSIS |
|
