Fuel tank, location/design/function - GF47.10-P-3000KA
MODEL 215, 220 with ENGINE 275.950

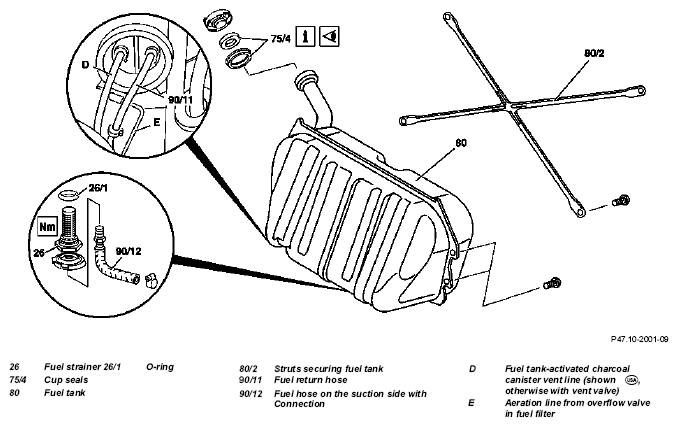

Shown without ski bag
| Fuel tank position | The fuel tank (80) is located in the trunk above the rear axle. | ||
| Fuel tank design | The fuel tank (80) is made of sheet steel. | ||
| Fuel tank function | The fuel is drawn through the fuel strainer (26) in the fuel inlet hose (90/12). It flows back from the overflow valve in the fuel filter via the return flow hose (90/11) to the swirl pot. The vent line (D) leads to the activated charcoal canister. | ||
| Vent valve, location/task/design/function | except |
GF47.30-P-3101M | |
| On-board refueling vapor recovery function | GF47.10-P-3004M |
