Fuel tank pressure sensor, location/task/function - GF47.30-P-4032M
MODEL 215, 220 with ENGINE 275.950 with CODE (494) USA version
MODEL 230 with ENGINE 275.951 with CODE (494) USA version
MODEL 216, 221 with ENGINE 275.953 with CODE (494) USA version
MODEL 230 with ENGINE 275.954 with CODE (494) USA version
MODEL 215, 220 with ENGINE 275.980 with CODE (494) USA version
MODEL 230 with ENGINE 275.981 with CODE (494) USA version
MODEL 216, 221 with ENGINE 275.982 with CODE (494) USA version
MODEL 240 with ENGINE 285.950 with CODE (494) USA version
MODEL 240 with ENGINE 285.980 with CODE (494) USA version

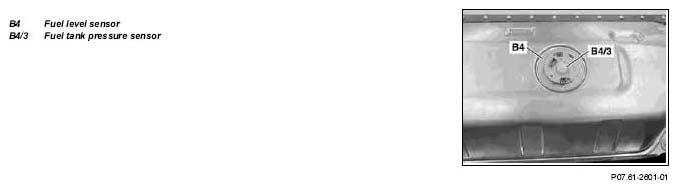

Shows model 220
| Fuel tank pressure sensor position | Model 215, 220, 230, 240: The tank pressure sensor is located at the top of the fuel level indicator sensor. Model 216, 221: The tank pressure sensor is located at the fuel filler neck. |
||
| Model 240 | GF47.30-P-4032-01M | ||
| Fuel tank pressure sensor task | Detecting the internal pressure of the fuel tank for leak test of the regeneration system. | ||
| Fuel tank pressure sensor function | The voltage supply of 5 V is performed by the ME control unit. The output signal is dependent on internal pressure of the tank: -50 mbar approx. 0.5 V. 0 mbar approx. 3V. |
