Charge Air Cooling Circulation Pump Position - Gf09.41-P-3102-01R

Models 215, 220

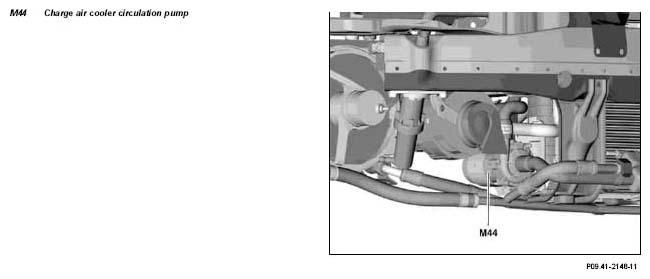

Fig 1: Identifying Charge Air Cooler Circulation Pump
G04840033

The Charge Air Cooler Circulation Pump Is Located At The Front, Behind The Front Right Wheelhouse.
