Location Of The Relay For The Charge Air Cooler Recirculation Pump - Gf09.41-P-3106-01M

Models 215, 220

The Fuse And Relay Box For The Engine Is Located In The Engine Compartment At The Rear On The Right.

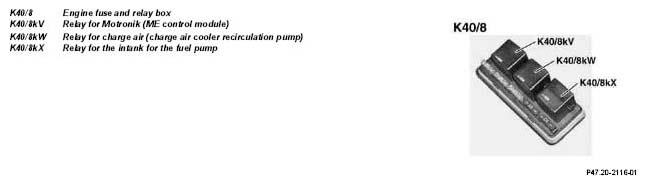

Fig 1: Identifying Charge Air Cooler Recirculation Pump Relays Location
G04840046
