Removing and installing complete exhaust system - AR49.10-P-7000L

ENGINE 137.970 in MODEL 215.378, 220.178

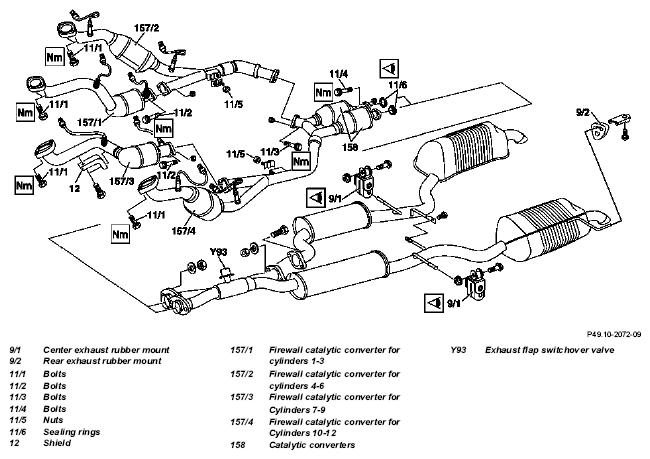

Fig 1: Identifying Complete Exhaust System Remove/Install Components

	Removing, installing
1	Remove lower engine compartment lining		AR61.20-P-1105M
2	Separate plug connections of O2 and diagnosis sensors		AR14.00-P-5303L
3	Remove front exhaust system		AR49.10-P-5531L
4	Detach vacuum line at exhaust flap switchover valve (Y93)
5	Unscrew bolts of exhaust rubber mount (9/2) of rear exhaust system	Inspect rubber mount (9/2) for damage, replace if necessary.
6	Unscrew bolts of exhaust rubber mount (9/1)	Inspect rubber mount (9/1) for damage, replace if necessary.
7	Lift out rear exhaust system complete
8	Install in the reverse order	Install exhaust system free of stress.
