Remove/install an oxygen sensor - AR14.00-P-5303AA

ENGINE 112.922 in MODEL 220.063

ENGINE 112.944 in MODELS 220.065 /165

ENGINE 113.941 in MODELS 220.070 /170

ENGINE 113.960 in MODELS 215.375, 220.075 /175 /875

ENGINE 113.991 in MODELS 215.374, 220.074 /174

ENGINE 112.972 in MODELS 220.067 /167

ENGINE 113.948 in MODELS 220.083 /183

ENGINE 113.966 in MODELS 220.084 /184

ENGINE 112.975 in MODELS 220.087 /187

Fig 1: Identifying TWC G3/3 Left And Right O2 Sensor Upstream

Fig 2: Identifying TWC G3/4 Right And Left O2 Sensor Upstream

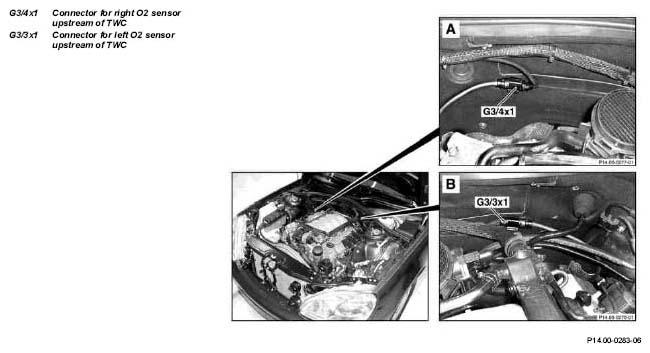

Fig 3: Identifying Connector For TWC Right And Left O2 Sensor Upstream

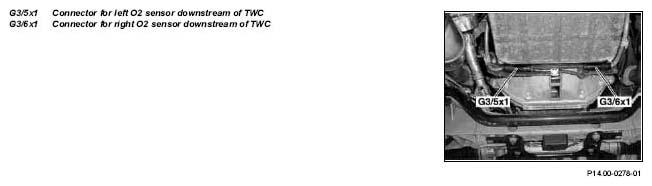

Fig 4: Identifying Connector For TWC Left And Right O2 Sensor Downstream

MODIFICATION NOTES

10.11.04

Value changed from 55 Nm to 45 Nm

Value in series 1001 for engine 112.910/911/912/913/914/915/916/920/921/922/923/940/941/942/943/944/945/946/947/949/953/955/960/961/970/972/973/975

Fig. item etc.	Work instructions
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Raise vehicle.
	O2 sensor to exhaust pipe/ exhaust manifold		*BA14.00-P-1001-01A
	Ring wrench socket		Fig 5

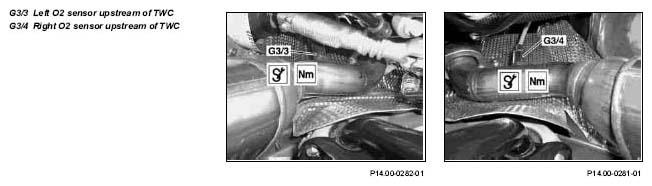

G3/3	Left O2 sensor upstream of TWC	Installation: Coat thread on O2 sensor with heat-resistant lubricant.	*BR00.45-Z-1005-06A
G3/4	Right O2 sensor upstream of TWC	Installation: Coat thread at O2 sensor with heat-resistant lubricant.	*BR00.45-Z-1005-06A

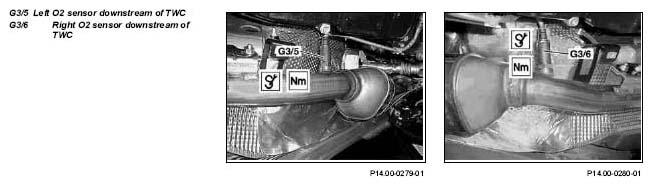

G3/5	Left O2 sensor downstream of TWC	Installation: Coat thread at O2 sensor with heat-resistant lubricant.	*BR00.45-Z-1005-06A
G3/6	Right O2 sensor downstream of TWC	Installation: Coat thread at O2 sensor with heat-resistant lubricant.	*BR00.45-Z-1005-06A
G3/3x1	Connector for left O2 sensor upstream of TWC
G3/4x1	Connector for right O2 sensor upstream of TWC
G3/5x1	Connector for left O2 sensor downstream of TWC
G3/6x1	Connector for right O2 sensor downstream of TWC

O2 SENSOR

Number	Designation		Engines 112.910/911/912/913/914/915/916/920/921/922/923/940/941/942/943/944/945/946/947/949/953/955/960/961/970/972/973/975	Engines 113.940/941/942/943/944/945/946/948/960/961/962/963/964/965/966/967/968/980/981/982/984/986/992/993/995	Engines 113.987/988/990/991
BA14.00-P-1001-01A	O₂ sensor on exhaust pipe/ exhaust manifold	Nm	45	55	50

Fig 5: Identifying Ring Wrench Socket (000 589 71 03 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste	A 000 989 76 51
