Remove/Install Low Temperature Water Circuit Radiator - Ar09.41-P-6935Mc
Engine 275.950 In Model 220.176
Modification Notes
| 1.12.05 | Cooling system | Engine 275.950 in model 215/220 | *BF20.00-P-1001-02Q |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury
to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | AR88.40-P-1000M | |
| 2 | Remove central and front sections of the lower engine compartment paneling | AR61.20-P-1105M | |
| 3 | Drain coolant from low temperature circuit | AR20.00-P-1142HM | |
| 4 | Remove front bumper | AR88.20-P-2000M | |

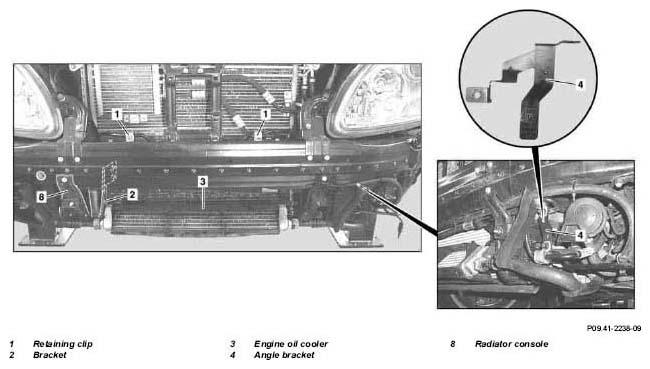

| 5 | Remove retaining bracket (1) for Active Body Control lines from front end assembly | ||
| 6 | Remove right bracket (2) on engine oil cooler (3) from front end assembly | ||
| 7 | Remove engine oil cooler (3) with attached lines downwards | ||
| 8 | Remove retaining bracket (4) | ||

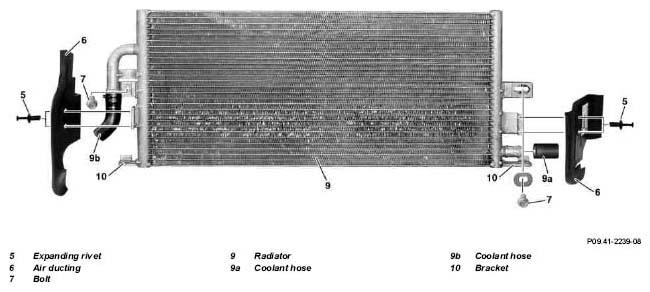

| 9 | Pull out expansion rivets (5) and remove air ductings (6) | ||
| 10 | Remove bolts (7) | ||
| 11 | Remove right radiator console (8) | ||
| 12 | Take off coolant hose (9a) from radiator (9) | *WH58.30-Z-1017-02A | |
| 13 | Remove engine radiator (9) downwards | ||
| 14 | Take off coolant hose (9b) from radiator (9) | ||
| 15 | Install in the reverse order | ||
| 16 | Pour in coolant | *BF20.00-P-1001-02Q | |
| 17 | Bleed low temperature circuit | AR20.00-P-1145H | |
| 18 | Inspect cooling system for leaks | AR20.00-P-1010HN |
| Number | Designation | Engine 275.950 in model 215/220 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02Q | Cooling system | Total filling capacity | Main circuit | Liters | ≈12.2 |
| Low temperature circuit | Liters | ≈1.55 | |||
| Filling capacity of anticorrosion and antifreeze down to -37°C | Main circuit | Liters | ≈6.1 | ||
| Low temperature circuit | Liters | ≈0.75 | |||
| Specifications for Operating Fluids | Sheet | BB00.40-P-0310-01A | |||
| Sheet | BB00.40-P-0325-00A | ||||
Commercially Available Tools
| Number | Designation |
|---|---|
| WH58.30-Z-1017-02A | Hose clamp pliers with Bowden cable |
