Remove/Install Circulation Pump For Low-Temperature Water Circuit - Ar09.41-P-6925La
Engine 275 In Model 215, 216, 220, 221
Shown On Model 220

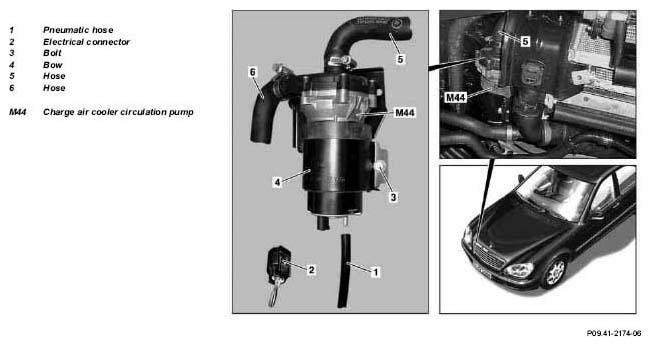

Fig 1: Identifying Charge Air Cooler Circulation Pump Remove/Install Components - Shown On Model 220
| Remove/install | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 1 | Remove lower engine compartment paneling | Model 215, 220 | AR61.20-P-1105M |
| Model 216 | AR61.20-P-1105SX | ||
| Model 221 without code (Z07) Top protection | |||
| Model 221 with code (Z07) Top protection | AR61.20-P-1105SXS | ||
| 2 | Drain coolant out of low temperature water circuit | AR20.00-P-1142HM | |
| 3 | Pull off pneumatic hose (1) | ||
| 4 | Pull off electrical plug connector (2) on circulation pump for the charge air cooler (M44) | ||
| 5 | Unscrew bolt (3) and remove clamp (4) | *BA09.41-P-1003-01G | |
| 6 | Remove hoses (5, 6) on circulation pump for charge air cooler (M44) | ||
| 7 | Remove circulation pump for charge air cooler (M44) | *BA09.41-P-1004-01G | |
| 8 | Install in the reverse order | ||
| 9 | Venting air from low temperature circuit | AR20.00-P-1145H | |
| 10 | Inspect cooling system for leaks | AR20.00-P-1010HN |
| Number | Designation | Engine 275, 285 | |
|---|---|---|---|
| BA09.41-P-1003-01G | Bolt, pump for low-temperature water circuit to bracket | Nm | 5 |
| BA09.41-P-1004-01G | Hose clamps to pump for low-temperature water circuit | Nm | 3 |
