Position Of The Low Temperature Cooler - Gf09.41-P-3103-01Am

Model 220

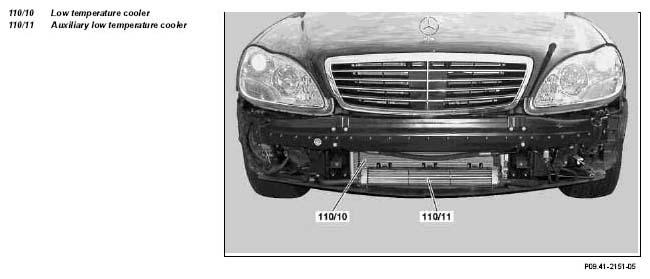

Fig 1: Identifying Low Temperature Coolers Location
G04840037

The Low Temperature Cooler Is At The Front Positioned Crosswise, Installed In Front Of The Radiator.

The Auxiliary Low Temperature Cooler Is Installed At The Front Positioned Crosswise, Behind The Fender.
