Removing and installing fanfare horns - AR54.35-P-1555I

MODEL 220

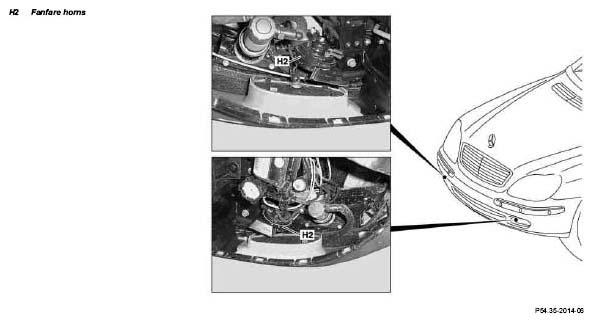

Fig 1: Identifying Fanfare Horns
G04849734
Figure item, etc. Working notes
IMPORTANT Engine compartment lining remove AR61.20-P-1105M
H2 Fanfare horns
