SL Class

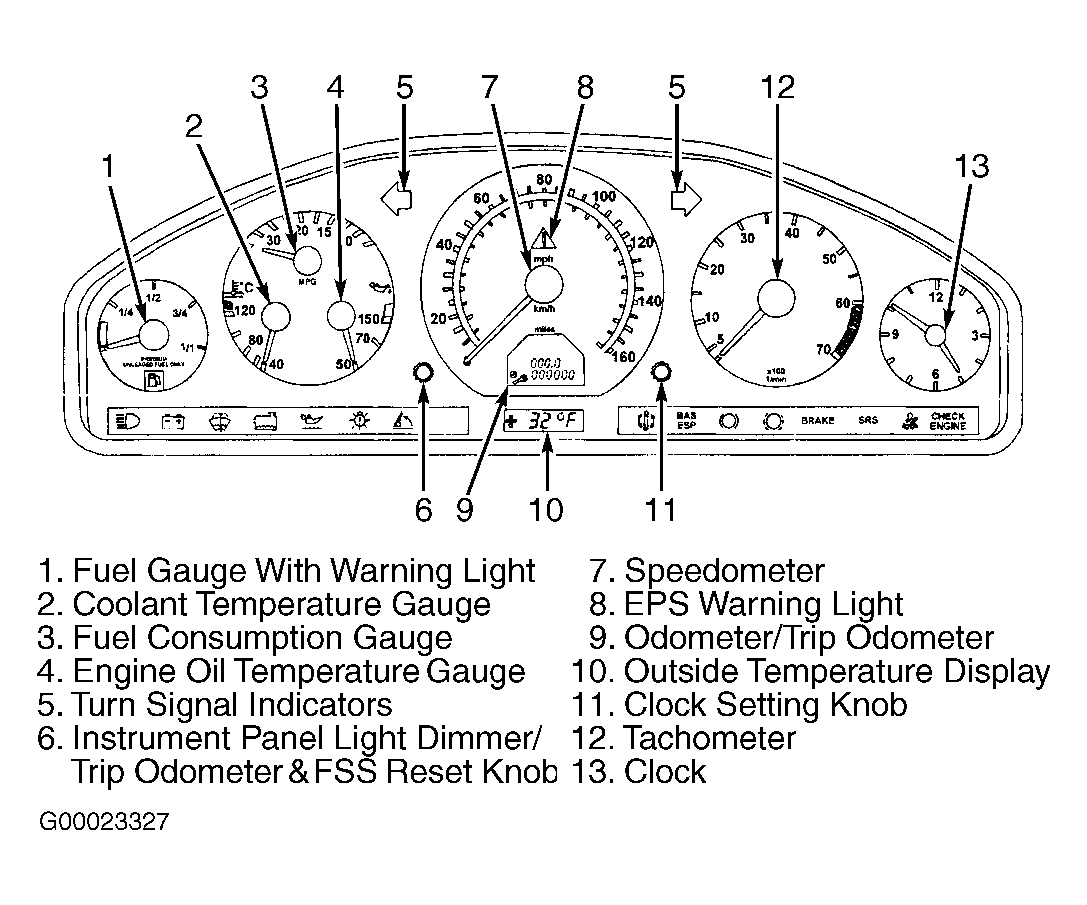

Instrument cluster uses analog type gauges which include: fuel gauge, fuel consumption gauge, coolant temperature, engine oil temperature, speedometer, and tachometer. LCDs include: odometer display field and outside temperature. Odometer display field is multifunctional and may display main odometer, trip odometer, Flexible Service System (FSS) indicator, oil level indicator, and start lock-out malfunction. Indicator lights include: low fuel and fuel cap placement warning, turn signals, Electronic Stability Program (ESP) warning, high beam indicator, charging system, low windshield and headlight washer fluid, low coolant level, low engine oil level, exterior light failure, roll bar warning, Brake Assist System/Electronic Stability Program (BAS/ESP) malfunction, Anti-Lock Brake System (ABS) malfunction, brake pads worn, BRAKE, Supplemental Restraint System (SRS) malfunction, fasten seat belt reminder, and CHECK ENGINE. See Fig 1.
