Cl & S Class

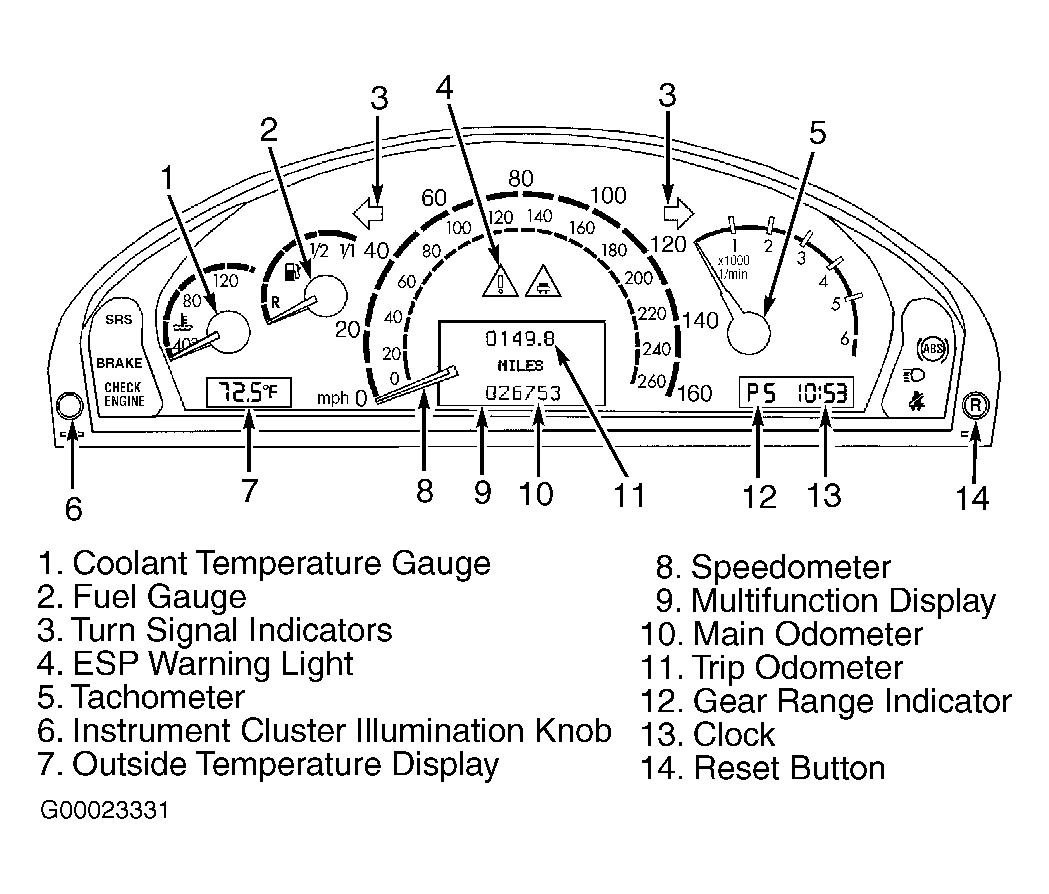

Instrument cluster uses analog type gauges which include: coolant temperature, fuel gauge, speedometer and tachometer. See Figure. Indicator lights include: low fuel and fuel cap placement warning, turn signals, Electronic Stability Program (ESP) warning, Supplemental Restraint System (SRS) malfunction, BRAKE warning, CHECK ENGINE, Anti-Lock Brake System (ABS) malfunction, high beam indicator, and fasten seat belt reminder. Single purpose LCDs include: outside temperature, gear range, and clock. Multifunction display LCD, located in speedometer, normally displays main odometer and trip odometer. When in mode that displays main and trip odometers, pressing up or down arrow on multifunction steering wheel will cycle through main/trip odometer, Flexible Service System (FSS) indicator, tire pressure monitor and oil level indicator displays. Flexible System Service (FSS) indicator will display in multifunction display for about 10 seconds when ignition is turned to run position, or while driving when reaching service warning threshold. Many other features such as engine oil level indicator, tire inflation monitor and Cockpit Management and Data System (COMMAND) can be displayed in multifunction display using buttons on multifunction steering wheel. See vehicle owner's manual for additional details.
