Cleaning perforations in brake discs - AR42.10-P-2260-01I

The bores in the perforated brake disks (61) may become clogged with brake dust. If this is the case the brake disks (61) must be cleaned.

1. Clear brake dust from holes in brake disk (61) using a suitable drift.

   If the brake dust cannot be removed by means of a drift, use cordless drill/driver and 4.3 mm dia drill bit. In doing so no chips from the brake disks may be detached, the bores in the brake disks (61) must on no account be enlarged!

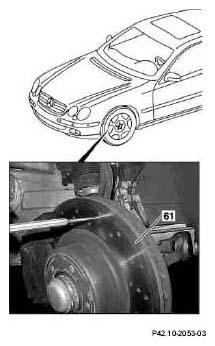

   Fig 1: Identifying Brake Discs Cleaning Procedure (1 Of 2)

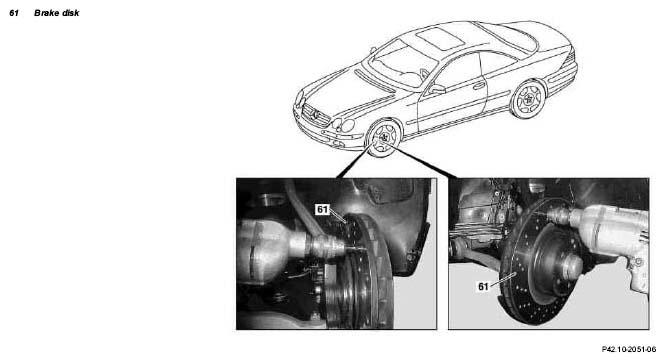

   Fig 2: Identifying Brake Discs Cleaning Procedure (2 Of 2)
