Adjusting parking brake - AR42.20-P-0540IM

MODEL 215.379, 220.179 with ENGINE 275.980

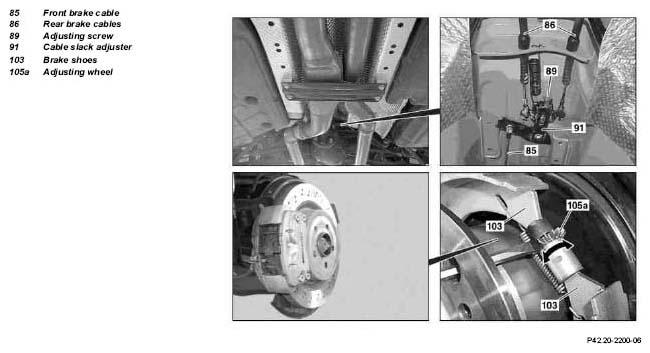

Fig 1: Identifying Parking Brake Adjusting Components
G04849518
  Inspecting, setting
DANGER Risk of death  cased by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
1 Check version of parking brake pedal assembly
REFER TO COMPONENT MODIFICATIONS Parking brake pedal assembly modified   BT42.20-P-0510-01A
2 Operate parking brake pedal and check pedal travel of parking brake pedal IMPORTANT If the pedal travel is not within the tolerance range, adjust parking brake.
    Actuating force on parking brake pedal *BE42.20-P-1001-01C
    Notches through which the parking brake pedal must be depressed *BE42.20-P-1002-01C
3 Lift vehicle with lifting platform until the wheels are clear
4 Remove rear wheels.
REFER TO MAINTENANCE Remove/install wheels, rotate if necessary   AP40.10-P-4050Z
5 Loosen adjusting screw (89)
NOTES Notes on repairs to brake system All models AH42.00-P-0003-01A
6 Using a suitable tool, turn the adjusting wheel (105a) until the brake shoes (103) touch the brake drum and the rear wheel no longer turns IMPORTANT Adjustment direction for applying the brake shoes (103):
Right side: Turn the adjusting wheel (105a) from the bottom upwards.
Left side: Turn the adjusting wheel (105a) from the top downwards.
7 Turn back the adjusting wheel (105a) until the rear wheel can be turned completely freely IMPORTANT Ensure that the adjusting wheel (105a) is turned back by the same number of teeth (10 to 11 teeth) on both sides.
8 Screw in adjusting screw (89) until front brake cable (85) and rear brake cables (85) no longer sag
9 Operate parking brake pedal several times and check pedal travel of parking brake pedal IMPORTANT If the pedal travel is not within the tolerance range, readjust parking brake at adjusting screw (89) at cable slack adjuster (91) until the correct number of notches is achieved at the pedal: ↓
    Actuating force on parking brake pedal *BE42.20-P-1001-01C
    Notches through which the parking brake pedal must be depressed *BE42.20-P-1002-01C
10 Check that the rear wheels can turn freely
11 Mount rear wheels
REFER TO MAINTENANCE Remove/install wheels, rotate if necessary   AP40.10-P-4050Z
ADJUSTMENT VALUES FOR PARKING BRAKE

Number Designation Model 215, pedal assembly with pulled detent Model 215, pedal assembly with pushed detent
BE42.20-P-1001-01C Actuating force on parking brake pedal N 170 (-50/+70) 170 (-50/+70)
BE42.20-P-1002-01C Notches through which the parking brake pedal must be depressed Quantity 1 5
See fig. BT42.20-P-0510-01A BT42.20-P-0510-01A
ADJUSTMENT VALUES FOR PARKING BRAKE

Number Designation Model 220, pedal assembly with pulled detent Model 220, pedal assembly with pushed detent
BE42.20-P-1001-01C Actuating force on parking brake pedal N 170 (-50/+70) 170 (-50/+70)
BE42.20-P-1002-01C Notches through which the parking brake pedal must be depressed Quantity 1 5
See fig. BT42.20-P-0510-01A BT42.20-P-0510-01A
