Brake system - inspect fluid level - AP42.10-P-4210M

MODEL 220.175 /176 /178 with CODE (Z07) Top protection

Using Model 463 as an example

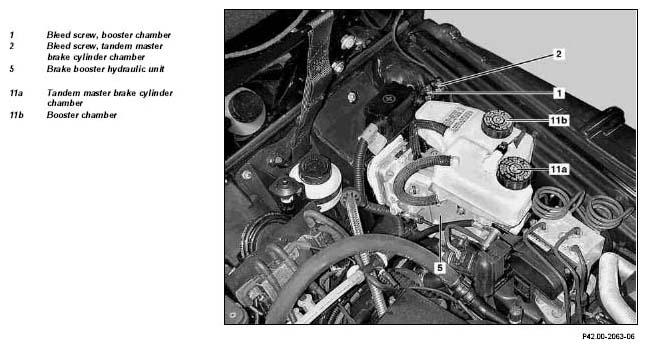

Fig 1: Identifying Brake System Fluid Level Components

	Check
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
1	Open engine hood and move to vertical position
	Opening engine hood, moving to upright position and closing		AR88.40-P-1000M
2	Switch off ignition	Vehicles with Keyless-Go Code 889: press Start/Stop button repeatedly until ignition is switched off.
3	Press the brake pedal approx. 30 times	Necessary to reduce the pressure in the storage system.
4	Check brake fluid level in the tandem master brake cylinder chamber (11a)	Depending on the condition of the brakes the fill level can fluctuate between the "MIN" and "MAX" mark. However the fill level must be on the "MAX" mark when the brake linings are new. If the fill level is below the "Min" mark, correct the fill level corresponding to the condition of the brakes.
5	Check brake fluid level in booster chamber (11b)	Fill up the booster chamber (11b) up to the "MAX" mark The fluid level may drop below the "MIN" mark after the ignition is switched on as the hydraulic system is filled.
