Xenon headlamps not functioning - AF82.10-P-6004F

MODEL 220.### ## up to 452130, 215.### ## as of 042585 up to 045862

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text
P	025112	Replace control unit and bulb for left and right xenon headlamp

Damage code	Cause	Remedy
82 119 73	Transistor in xenon headlamp control unit (E1n1/E2n1) defective.	1 Remove/install/replace xenon headlamp control unit (E1n1/E2n1) and xenon-bulb.	AR82.10-P-4632N
	The xenon bulb does not ignite and/or flickers.
		Ensure that the ignition module latches in position correctly.

Shows model 215

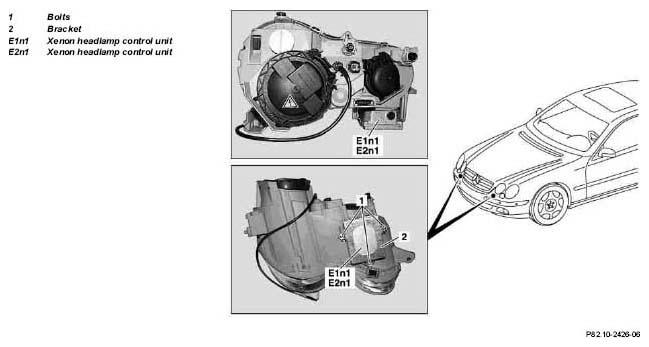

Fig 1: Identifying Xenon Headlamp Control Unit, Bracket And Bolts

G04852264

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 220 820 38 85	Control unit (xenon control unit under headlamp code 487+614/487+618)	1
A 220 820 19 26	Control unit (xenon headlamp under headlamp code 487+949+614/949+614)	1
A 203 820 37 85	Control unit (xenon control unit under headlamp code 614/618)	1
N 910 139 00 00 01	Hot space (xenon burner)	1
