Rear dome lamp comes out of mount - AF82.20-P-2001A
MODEL 220 with CODE (979) Special protection version
| Damage code | Cause | Remedy: | |
|---|---|---|---|
| 82 304 38 | Dome lamp mount can come loose at high temperatures | 1 Remove rear dome lamp | AR82.20-P-0113M |

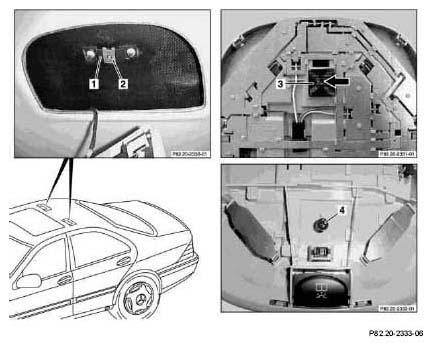

| 2 Replace original holder with Velcro mount with new holder (1) with sheet metal nut (2). | |||
| 3 Drill through Velcro mount (3) for dome lamp in center with 6 mm dia. bit. (arrow). | |||
| 4 Install dome lamp and align | |||
| 5 Fasten dome lamp with sheet metal screw (4). | |||
| 6 Install in the reverse order. |
