Poor portable CTEL reception - AF82.70-P-1007A

MODEL 215, 220 with CODE (228) Stationary heater with CODE (273) Provision for D-network portable CTEL with CODE (278) Complete telephone preinstallation without portable CTEL with CODE (854) MB portable CTEL

Damage code	Cause	Remedy
	Antenna lead for VDA (telephone) wiring harness from splitter and antenna lead from antenna to splitter can be connected incorrectly. Portable CTEL reception/transmission poor or none whatsoever	1 Connect antenna leads according to drawing enclosed

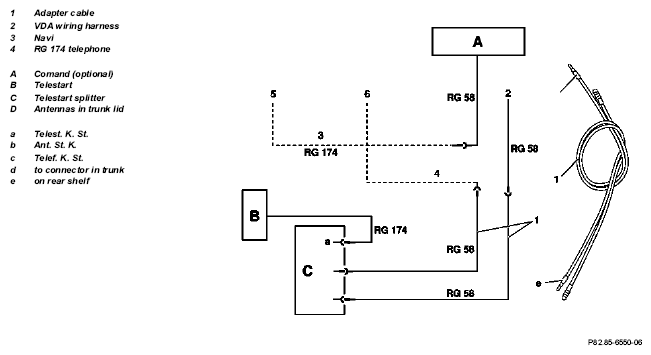

Fig 1: Poor Portable CTEL Reception Circuit Diagram
