Retrofit TV tuner wiring harness - AN82.60-P-0001-03MMA

  1. Prepare adapter wiring harness (1) as shown in illustration.

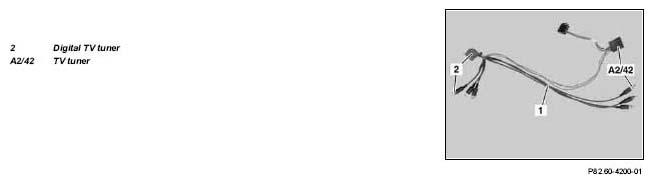

    Fig 1: Identifying Digital TV Tuner And TV Tuner
    G04852434
  2. Connect adapter wiring harness (1) to TV tuner (A2/42) and digital TV tuner (2) as shown in illustration.

    IMPORTANTTV tuner with AV connection:

    Connection to TV tuner (A2/42) normally takes place at AV1 connections (3 color-coded plugs).

    If these are occupied, connect to AV2.

    Fig 2: Identifying Adapter Wiring Harness Connecting TV Tuner And Digital TV Tuner
    G04852435

    IMPORTANT With TV tuner with 12-pin MQS plug connection takes place with MQS coupling (12).

    Fig 3: Identifying TV Tuner With MQS Coupling
    G04852436
  3. Connect antenna wiring harness (3) to antenna connection as shown in illustration (6).
    Fig 4: Identifying Antenna Wiring Harness
    G04852437
  4. Attach the 4 coded connecting plugs (arrow) to the digital TV tuner (2).
    Fig 5: Locating 4 Coded Connecting Plugs
    G04852438
  5. Connect antenna plug to TV tuner (A2/42).

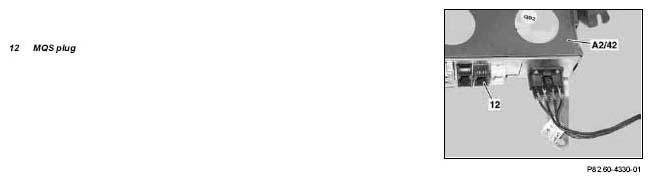

    Fig 6: Identifying MQS Plug
    G04852439
