Retrofitting transmitter/receiver - AZ82.70-P-0001-06IA

Models 215, 220

Illustrated on model 220

1. Install bracket (2) and fasten CTEL transmitter and receiver (A35) to installation plate with screws (1).
2. Install connector for D2B interface adapter cable (3) for permanently installed telephone (A59) to CTEL transmitter and receiver (A35).
3. Install angular antenna connector (4) on CTEL transmitter and receiver (A35)

   The D2B interface for permanently installed telephone (A59) is located below the installation plate.

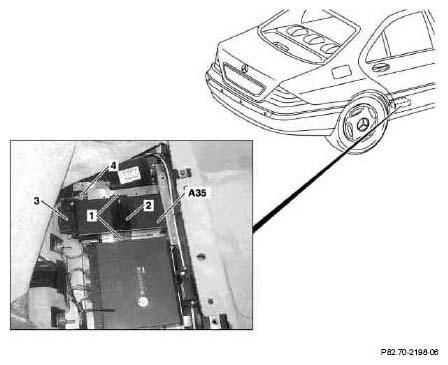

   Fig 1: Identifying Transmitter/Receiver Components Location - Model 220
