Retrofitting interface - AZ82.70-P-0001-07IB

Models 215, 220

Illustrated on model 220

  1. Unscrew nuts (1), screws (2) and remove installation plate (3) from floor.
  2. Install D2B interface for permanently installed telephone (A59) on installation plate (3) with screws (4).
  3. Install connector (5a).
  4. Install fiber optic cable (5c) connector.
  5. Install adapter cable (5b) connector on transmitter/receiver.
  6. Install installation plate (3) to vehicle floor with screws (1) and nuts (2).

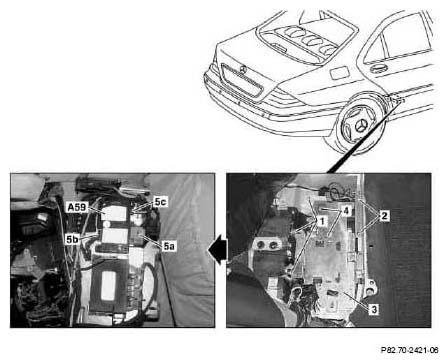

    Fig 1: Identifying Interface Components Location - Model 220
    G04852928
