Retrofitting interface - AZ82.70-P-0001-07IA

Models 215, 220

Illustrated on model 220

1. Unscrew nuts (1), screws (2) and remove installation plate (3) from floor.
2. Install D2B interface for portable mobile telephone (A59/1) on installation plate (3) with screws (4).
3. Install connector (5a).
4. Install fiber optic cable (5b) connector.
5. Install installation plate (3) to vehicle floor with screws (1) and nuts (2).

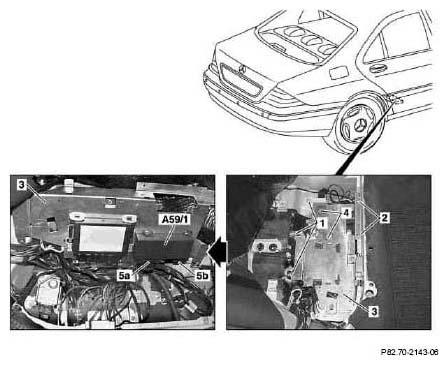

   Fig 1: Identifying Interface Components Location - Model 220
