Retrofitting E-net compensator - AZ82.70-P-0001-10GG

  1. Fasten E-net compensator (A28/3) as shown in figure to right side wall in trunk with two standard commercial sheet metal screws (15).

    IMPORTANT Do not kink antenna leads Do not damage control modules installed behind side wall.

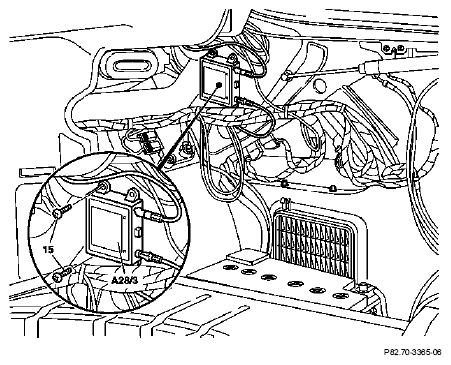

    Fig 1: Identifying E-Net Compensator Components Location
    G04852936
