Retrofit handset - AZ82.70-P-0001-09IB
Models 215, 220 up to 30.6.00

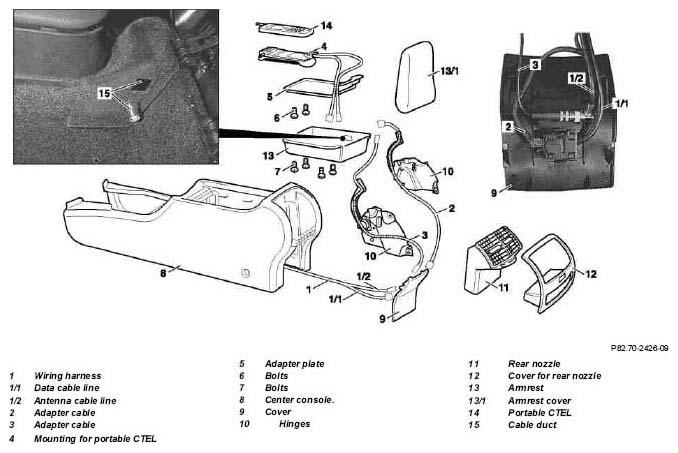

Shown on center console of model 220
- Remove cover for rear nozzle (12), rear nozzle (11), covering (9) and armrest from center console (8).
- Clip in the wiring harness connectors (1), comprising data cable line (1/1) and antenna cable line (1/2) to covering (9).
- Connect adapter cable (2) to data cable line (1/1), insert into right-hand hinge (10) and route to armrest's storage box (13). Connect adapter cable (3) to antenna cable line (1/2), insert into left-hand hinge (10) and route to armrest's storage box (13).
- Uncouple pre-stamped coverings for cable ducts (15) from the armrest storage box (13) and clip in or mount the connectors for the adapter cables (2, 3) on the storage box.
- Bore holes at points marked in base of storage box for screws (7).
- Install portable CTEL mounting (4) using screws (6) onto the adapter plate (5).
- Connect leads coming from portable CTEL mounting (4) to the cable ducts (15) using the adapter cables (2, 3).
- Use screws (7) to mount adapter plate (5) into storage box.
