Retrofit CTEL/GPS antenna - AZ82.70-P-0001-08IA

Model 220

Do not uncover large adhesive pad on cellular telephone and GPS roof antenna (A2/49) until just before sticking to rear window.

1. Uncover small adhesive pad (1) for attaching cellular telephone and GPS roof antenna (A2/49) on trim strip (2) and stick antenna to trim strip (2).
2. Insert antenna leads (3) into trim strip using suitable tool (2).

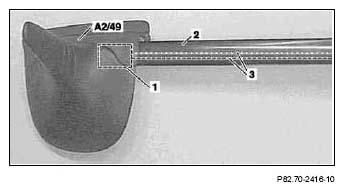

   Fig 1: Identifying Small Adhesive Pad, GPS Roof Antenna And Trim Strip


3. Install trim strip (2) and route antenna leads (3) with rubber grommet into interior through cable duct (A). At same time, seal cable duct (A) using rubber grommet.

   Ensure that leads are routed behind the trim strip clamp (4).

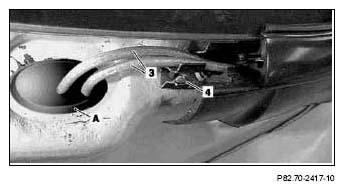

   Fig 2: Identifying Trim Strip And Route Antenna Leads


4. Route antenna leads (3) from cable duct (A) to cable duct (B) in trunk.

   Cable duct (B) is located beneath right rear shelf near trunk lid cable retractor (5).

   Fig 3: Identifying Antenna Leads And Cable Duct


5. Route antenna leads (3) to lead retainer (6) and clip in.

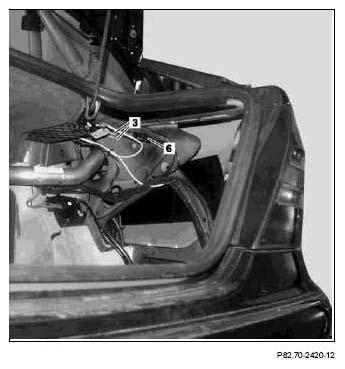

   Fig 4: Identifying Antenna Leads And Lead Retainer



   Before sticking antenna on, clean rear window using cleaning agent and treat with glass primer.

6. Uncover large adhesive pad for attaching cellular telephone and GPS roof antenna (A2/49) and press cellular telephone and GPS roof antenna (A2/49) onto rear window.

   When pressing on, approx. 20 kg must be applied to antenna for approx. 5 seconds.

   Fig 5: Identifying GPS Roof Antenna
