Retrofitting CD changer - AZ82.64-P-0001ID

MODEL 215 with CODE (750a) MB radio Audio 30 RDS with CODE (753) MB radio Audio 30 RDS with CODE (756a) MB radio Audio 10 RDS with CD compartment with CODE (352a) COMAND operating and display system without further special equipment

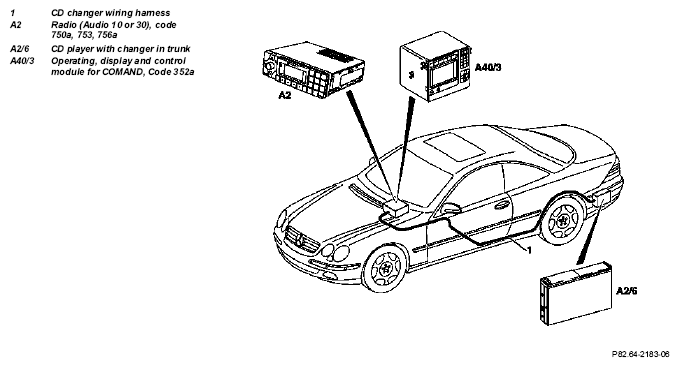

Fig 1: Identifying CD Changer Components Location - Model 215

	Notes on fiber optic		AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery
			AR54.10-P-0003I
2.1	Remove radio
			AR82.60-P-7502N
2.2	Remove/install operating, display and control module	With COMAND control and display system (code 352a).
			AR82.85-P-7472N
3	Remove rear passenger compartment floor covering
			AR68.20-P-4800N
4	Open left wiring duct
5	Remove rear backrest
			AR91.12-P-1620MA
6	Remove quarter panel	Only left side
			AR68.30-P-1450N
7	Remove coverings in trunk	Left paneling and on rear wall
			AR68.30-P-4600M
	Install
8	Install optical waveguide module
			AR82.70-P-0004-01A
9	Retrofit CD changer wiring harness		AZ82.64-P-0001-01IA
	Cover optical waveguide	Do not kink or stretch D2B fiber optic.  Install covers on fibre-optic coupling and equipment connector.	AR82.95-P-0005-01A
10	Retrofit CD changer in trunk		AZ82.64-P-0001-05IA
11	Installation proceeds in reverse order	Steps 1, 2, 3, 4, 5, 6, 7.
12	Perform startup and function check	Perform version coding (CD changer) with STAR DIAGNOSIS
13	Enable radio	Only when installing new radio 1021 of 1069
14	when scope of equipment changes reenter code or designation of corresponding special equipment on vehicle card
