Retrofitting CD changer wiring harness - AZ82.64-P-0001-01IC
Model 215, 220
Installation illustrated on model 220

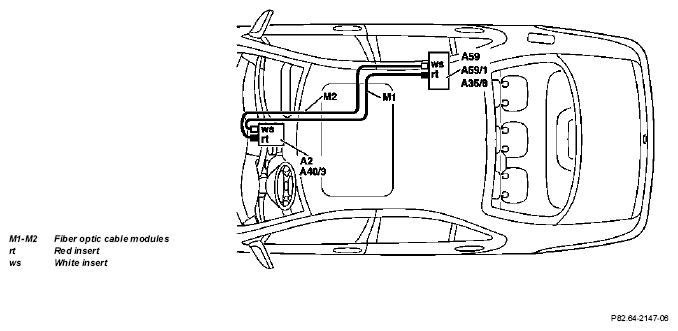

Equipment sequence before installation as follows:
- Radio (A2) or COMAND operating, display and control module (A40/3)
- D2B interface for permanently installed telephone (A59) (only with code 316)
or
D2B interface for cellular telephone (A59/1) (only with code 317)
or
TELE AID control module (A35/8) (code 347)
- Voice control system control module (code 813) and optional cellular telephone interface not listed; is not affected by retrofitting.
- Radio (A2) or COMAND operating, display and control module (A40/3)

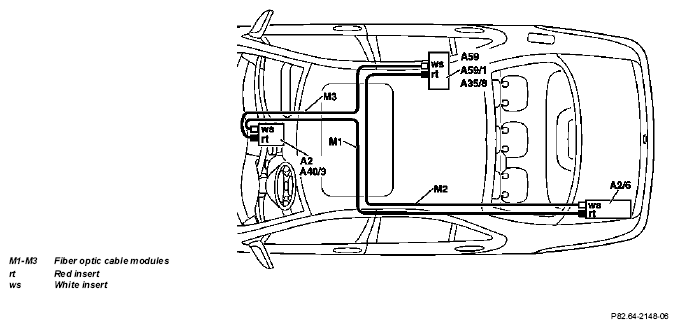

Equipment sequence following installation (must be maintained):
- Radio (A2) or COMAND operating, display and control module (A40/3)
- CD changer (A2/6)
- D2B interface for permanently installed telephone (A59) (only with code 316)
or
D2B interface for cellular telephone (A59/1) (only with code 317)
or
TELE AID control module (A35/8) (code 347)
- Voice control system control module (code 813) and optional cellular telephone interface not listed; is not affected by retrofitting.
- Radio (A2) or COMAND operating, display and control module (A40/3)

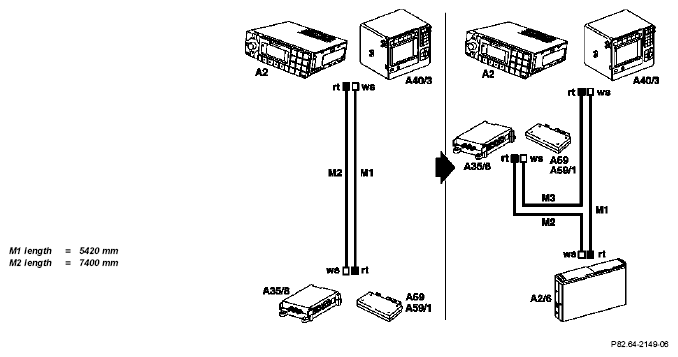

After installing new ring equipment, it is necessary to renumber the fiber optic cables (observe information flow).
Supplementing D2B ring wiring harness:
- Disconnect radio (A2) connector housing or COMAND operating, display and control module (A40/3).
- Unlock connector housing and remove white insert (ws) from radio (A2) connector housing or COMAND operating, display and control module (A40/3).
- Insert new M1 fiber optic cable module with white insert (ws) into radio (A2) connector housing or COMAND operating, display and control module (A40/3) and lock housing.
- Insert red insert (rt) from new M1 fiber optic cable module into new CD changer (A2/6) connector housing. Insert white insert (ws) from new M2 fiber optic cable module into new CD changer (A2/6) connector housing and lock connector housing.
Reconnect connector housing to CD changer (A2/6).
- Disconnect connector housing from next piece of ring equipment and unlock. Insert red insert (rt) from new M2 fiber optic cable module into old connector housing on next piece of ring equipment and lock connector housing. Reconnect connector housing to next piece of ring equipment.
- Route fiber optic cable along existing leads while observing special routing guidelines and fasten with adhesive felt.

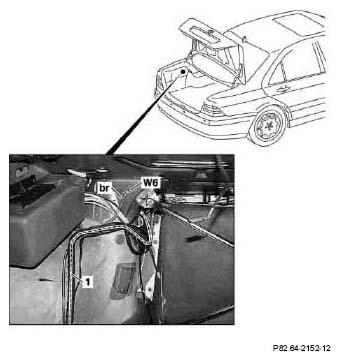

- Route CD changer (1) wiring harnesses (power supply and fiber optic cable) from trunk to wire passage in rear wall along existing wiring harnesses and continue to left rear wiring duct. Connect brown lead (br) from power supply wiring harness to ground in trunk, left wheelhouse (W6).

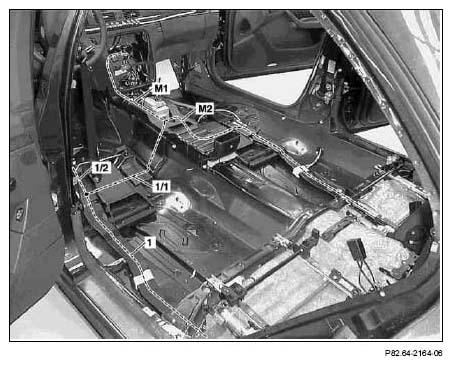

- Route wiring harnesses (1) toward front in left wiring duct. Route fiber optic cable (1/1) wiring harness to selector lever in existing wiring duct. Route M1 fiber optic cable module from selector lever out to center console through existing wiring duct. Route M2 fiber optic cable module from selector lever to installation location for telephone through existing wiring ducts (below right rear seat). Insert power supply (1/2) wiring harness from inner rocker panel to driver's footwell in existing wiring duct.

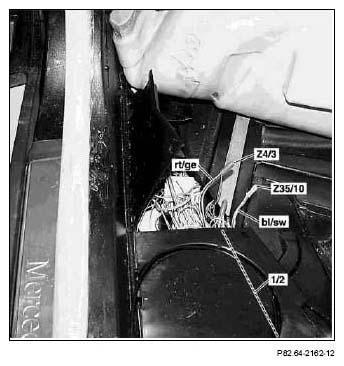

- Solder blue/black lead (bl/sw) from wiring harness power supply (1/2) to blue/black lead (bl/sw) on end sleeve (Z35/10) for wakeup signal using solder connector.
Solder red/yellow lead (rt/ge) from wiring harness power supply (1/2) to red/yellow lead (rt/ge) on end sleeve (Z4/3) of circuit 30 using solder connector.
